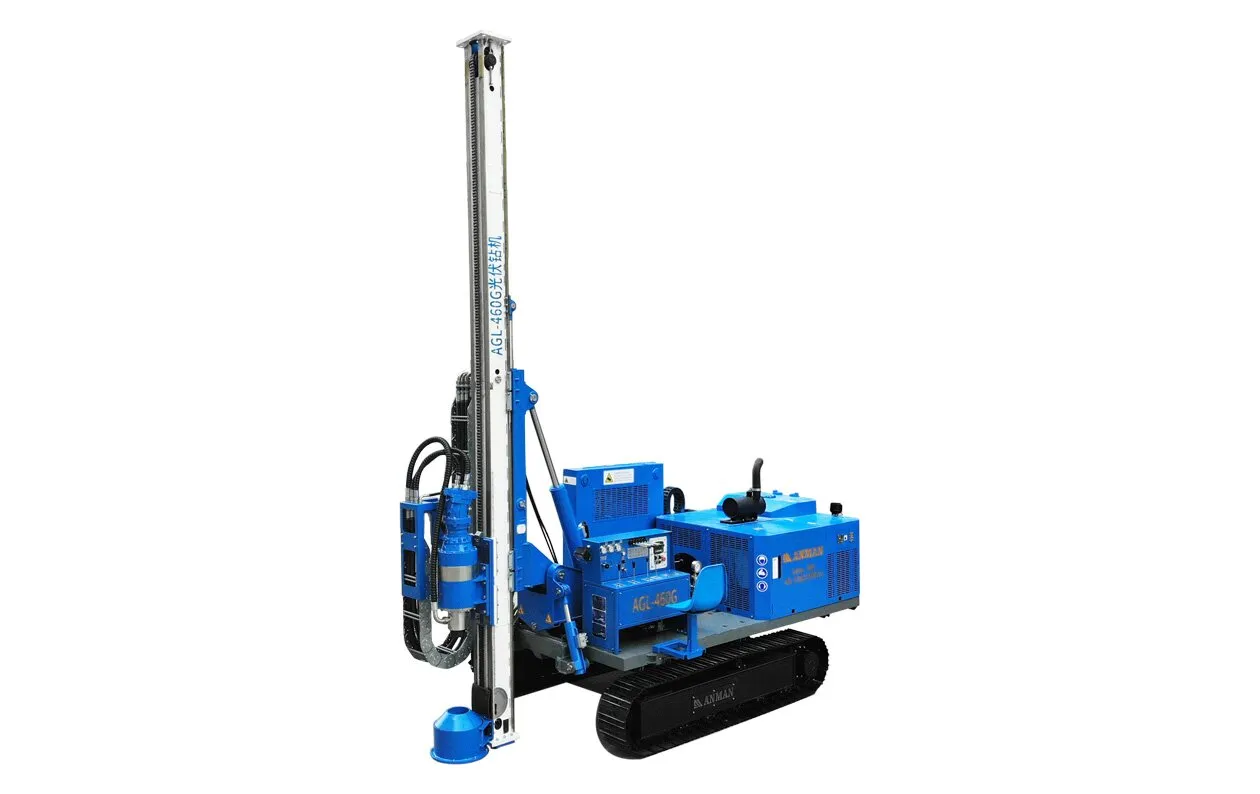

AGL-460G
Multi-functional photovoltaic drilling rig, high-efficiency, precise, multi-purpose. Flexible positioning for mountain and Gobi areas, easily completing various pile foundation constructions.
{Weight^7000kg}
{Electric power^96kW}
{Max rotary torque^8500N·m}
{Electric power^96kW}
{Max rotary torque^8500N·m}
Weight：7000kg
Electric power：96kW
Max rotary torque：8500N·m

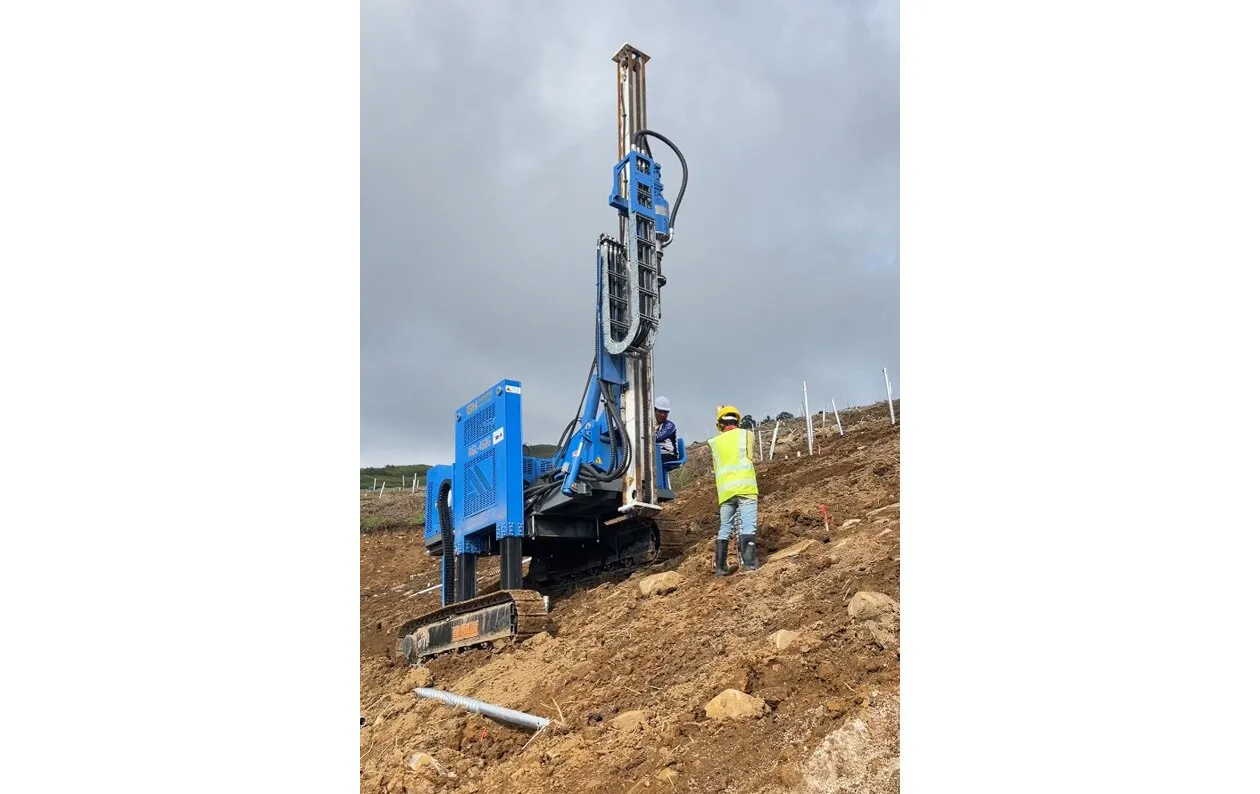

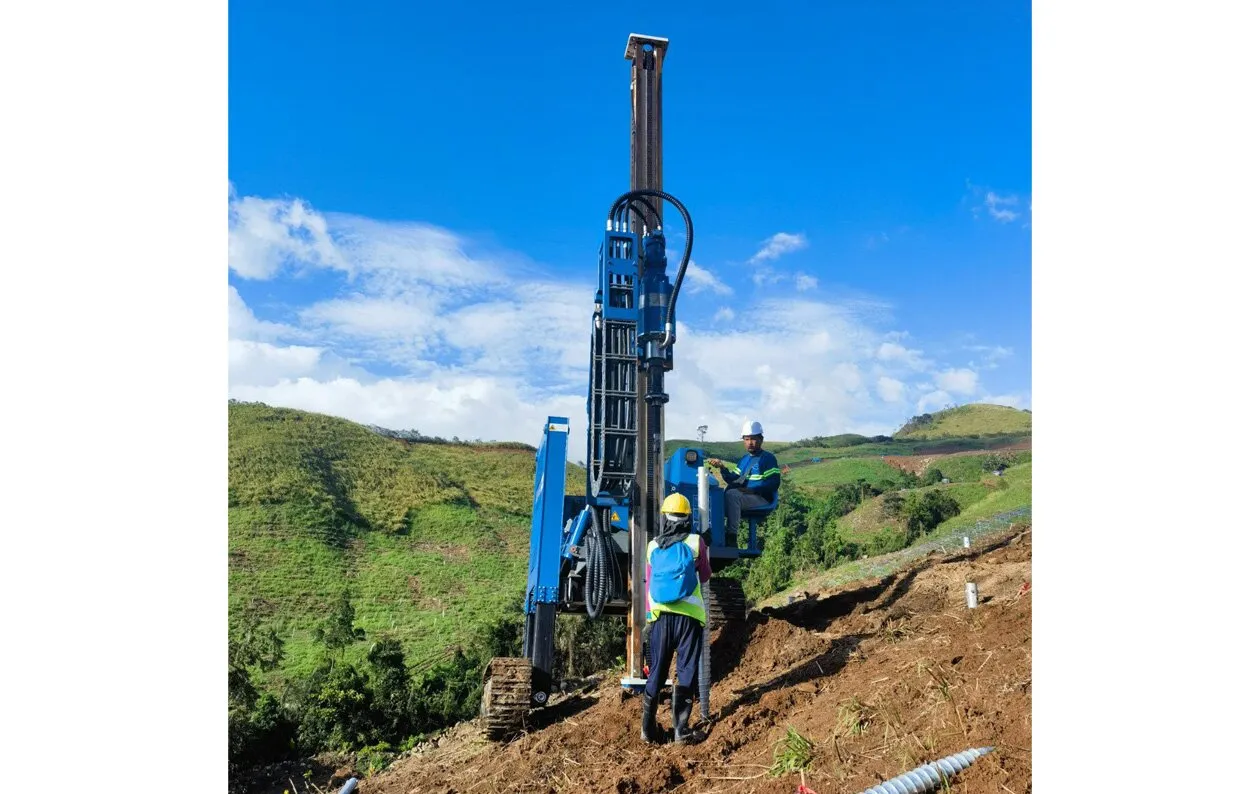

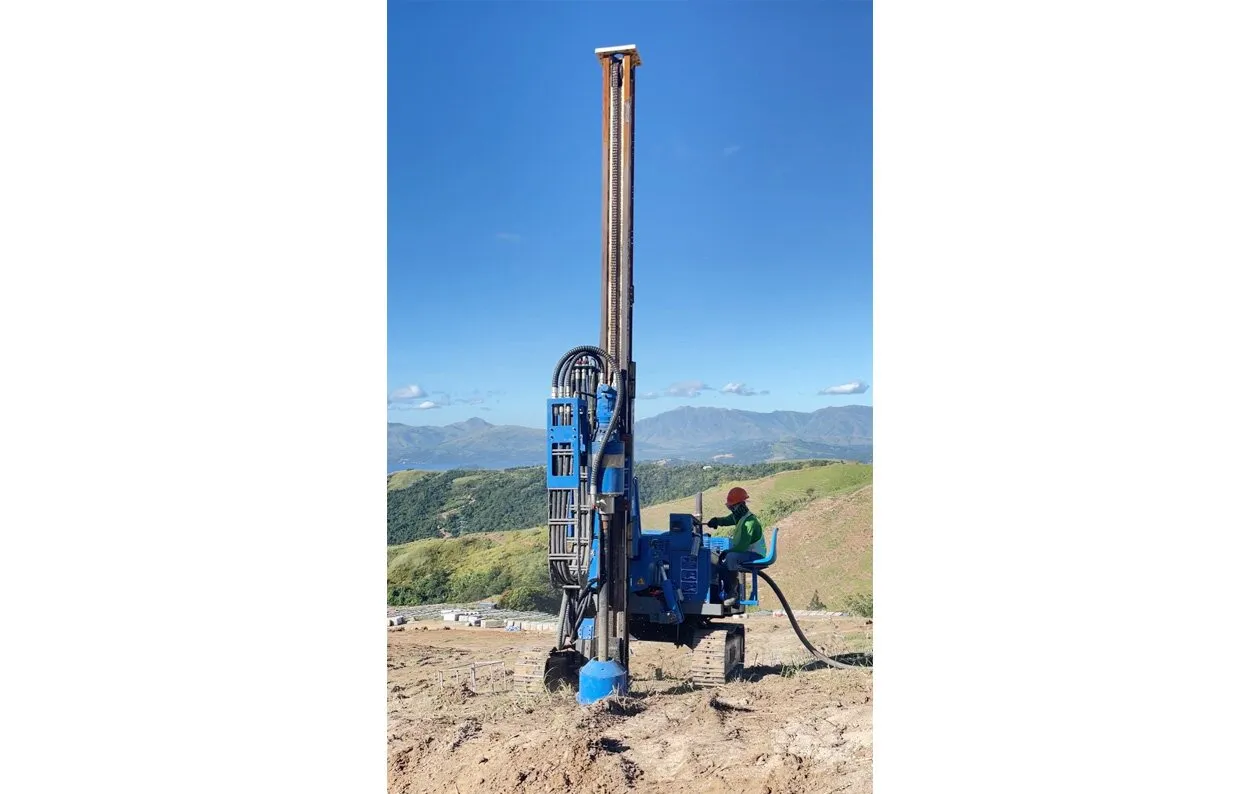

APPLICATION SCENARIOS
PRODUCT OVERVIEW
AGL-460G is a high-efficiency drilling rig specially developed for photovoltaic pile construction. Modular design enables multi-functionality. Equipped with a self-adaptive speed system, construction efficiency is increased by 30%. 320mm tracks provide strong grip, adapting to mountain and slope conditions. The orifice guide ensures precise hole alignment. Widely used for photovoltaic piles, auger rod construction and ground pile installation, it is a reliable special equipment for photovoltaic projects.
{High-low leg design, ideal for mountain construction.}
{Equipped with a newly upgraded self-adaptive speed system, improving construction efficiency by 30%.}
{Wide range of construction applications. High speed, large torque, hydraulic breaker construction, ample engine power. Switchable modules for various scenarios, multi-purpose in one machine.}
{Capable of 6m steel pile implantation. Fully meets market construction requirements.}
{Flexible omnidirectional hole alignment. Rotating arm with left-right swing angle and adjustable pitch angle for fast and convenient multi-angle hole positioning.}
{Unlimited operation on mountainous and Gobi terrain. 320mm tracks with strong grip; telescopic high-low leg crawler for wide adaptability to slope construction.}
{Accurate hole alignment. Equipped with orifice guide device for precise positioning, safe and reliable construction.}
{Widely used in: photovoltaic solar piles, auger rod construction, ground pile installation and other construction scenarios.}
{Equipped with a newly upgraded self-adaptive speed system, improving construction efficiency by 30%.}
{Wide range of construction applications. High speed, large torque, hydraulic breaker construction, ample engine power. Switchable modules for various scenarios, multi-purpose in one machine.}
{Capable of 6m steel pile implantation. Fully meets market construction requirements.}
{Flexible omnidirectional hole alignment. Rotating arm with left-right swing angle and adjustable pitch angle for fast and convenient multi-angle hole positioning.}
{Unlimited operation on mountainous and Gobi terrain. 320mm tracks with strong grip; telescopic high-low leg crawler for wide adaptability to slope construction.}
{Accurate hole alignment. Equipped with orifice guide device for precise positioning, safe and reliable construction.}
{Widely used in: photovoltaic solar piles, auger rod construction, ground pile installation and other construction scenarios.}
- •High-low leg design, ideal for mountain construction.
- •Equipped with a newly upgraded self-adaptive speed system, improving construction efficiency by 30%.
- •Wide range of construction applications. High speed, large torque, hydraulic breaker construction, ample engine power. Switchable modules for various scenarios, multi-purpose in one machine.
- •Capable of 6m steel pile implantation. Fully meets market construction requirements.
- •Flexible omnidirectional hole alignment. Rotating arm with left-right swing angle and adjustable pitch angle for fast and convenient multi-angle hole positioning.
- •Unlimited operation on mountainous and Gobi terrain. 320mm tracks with strong grip; telescopic high-low leg crawler for wide adaptability to slope construction.
- •Accurate hole alignment. Equipped with orifice guide device for precise positioning, safe and reliable construction.
- •Widely used in: photovoltaic solar piles, auger rod construction, ground pile installation and other construction scenarios.
TECHNICAL SPECS
{Machine Parameters,[
Weight^7000kg^,
Transport dimension^5960mm*2148mm*2577mm^]}
{Undercarriage,[
Max climbing ability^30°^,
Max Travel Speed^4000m/h^，
Telescopic High-Low Leg Crawler^√]}
{Power pack,[
Electric power^96kW^,
System pressure^20MPa^,
Fuel tank^160L^]}
{Mast,[Feed stroke^4600mm^,Max Pile Driving Stroke^6000mm，Carriage Pitch Angle^110°，Carriage Swing Angle^Left15°、Right25°，Arm Swing Angle^±25°]}
{Drifter parameters,[Max rotary torque^8500N·m,Max rotary speed^80r/min,Power Head Flow^170L/min,Max impact power^1326N·m，Max impact frequency^800bpm]}
Weight^7000kg^,
Transport dimension^5960mm*2148mm*2577mm^]}
{Undercarriage,[
Max climbing ability^30°^,
Max Travel Speed^4000m/h^，
Telescopic High-Low Leg Crawler^√]}
{Power pack,[
Electric power^96kW^,
System pressure^20MPa^,
Fuel tank^160L^]}
{Mast,[Feed stroke^4600mm^,Max Pile Driving Stroke^6000mm，Carriage Pitch Angle^110°，Carriage Swing Angle^Left15°、Right25°，Arm Swing Angle^±25°]}
{Drifter parameters,[Max rotary torque^8500N·m,Max rotary speed^80r/min,Power Head Flow^170L/min,Max impact power^1326N·m，Max impact frequency^800bpm]}
Machine Parameters
| Weight | 7000kg | |
| Transport dimension | 5960mm*2148mm*2577mm |
Undercarriage
| Max climbing ability | 30° | |
| Max Travel Speed | 4000m/h | |
| Telescopic High-Low Leg Crawler | √ |
Power pack
| Electric power | 96kW | |
| System pressure | 20MPa | |
| Fuel tank | 160L |
Mast
| Feed stroke | 4600mm | |
| Max Pile Driving Stroke | 6000mm | |
| Carriage Pitch Angle | 110° | |
| Carriage Swing Angle | Left15°、Right25° | |
| Arm Swing Angle | ±25° |
Drifter parameters
| Max rotary torque | 8500N·m | |
| Max rotary speed | 80r/min | |
| Power Head Flow | 170L/min | |
| Max impact power | 1326N·m | |
| Max impact frequency | 800bpm |
RELATED PRODUCTS
PROJECT CASES
3010^2998^3286
China

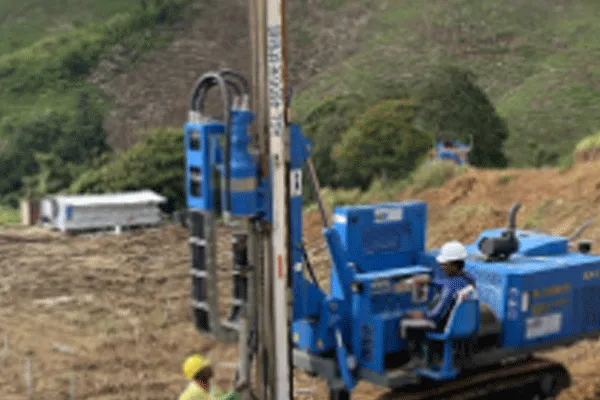

Philippines Geothermal Mountain Drill Rig
AGL-460G geothermal drilling rig in Philippines mountains — screw drill pipe case for mountain drill...
UAE

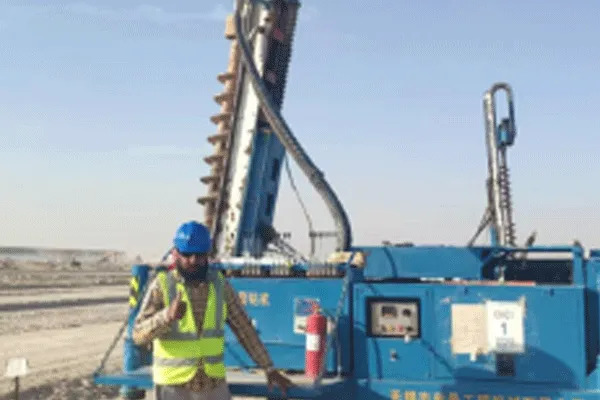

Dubai Flat-Plate Photovoltaic Drill Rig Construction Technique
Dubai desert solar project: MXL-150DC Anman solar drilling rig. 80° inclined drilling construction, ...
China

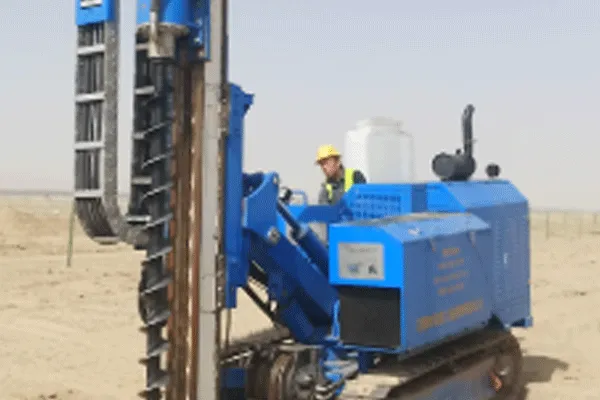

Anman's Tibet Flat-Top Solar Drilling Technology: A New Era in Construction Efficiency
