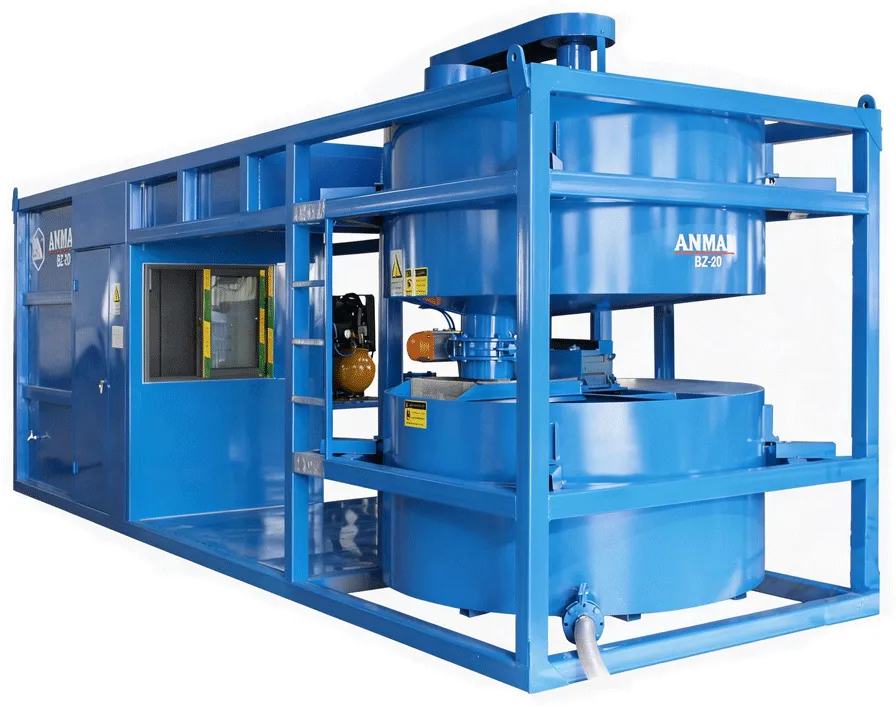

BZ-20

Name: BZ-20
Brand: Anman Drill
Availability: InStock

BZ-20 Full-automatic Jet Grouting Mixing Plant, intelligent proportioning, automatic pulping, data recordable, compact, reliable and energy-saving, supporting efficient and precise jet grouting construction.

{Mixing capacity^20m³/h}
{Total power^50.5kW}
{Total weight^5100kg}

Mixing capacity：20m³/h

Total power：50.5kW

Total weight：5100kg

APPLICATION SCENARIOS

3040

BECOME A DISTRIBUTOR +8613921112897

PRODUCT OVERVIEW TECHNICAL SPECS RELATED PRODUCTS PROJECT CASES SERVICE POLICIES USER REVIEWS

PRODUCT OVERVIEW

BZ-20 is a fully automatic mixing station specially designed for jet grouting construction. The intelligent system supports automatic proportioning, pulping and data recording, improving construction accuracy and efficiency. Compact in structure and easy to operate, it is widely used in high-pressure jet grouting, MJS and other projects. It is an energy-saving, accurate and reliable cement slurry preparation system.

{Widely used in jet grouting, precisely meeting international jet grouting construction requirements.}
{Improve mixing efficiency, achieve accurate proportioning, save labor and reduce cement slurry waste.}
{Adjust proportioning data according to on-site construction requirements. The mixing plant enables automatic pulping and full-process data recording.}
{It can export digital forms for controllable and traceable costs.}

•Widely used in jet grouting, precisely meeting international jet grouting construction requirements.
•Improve mixing efficiency, achieve accurate proportioning, save labor and reduce cement slurry waste.
•Adjust proportioning data according to on-site construction requirements. The mixing plant enables automatic pulping and full-process data recording.
•It can export digital forms for controllable and traceable costs.

TECHNICAL SPECS

{Batching Plant Specs,[
Transport Dims^7500*2200*2400mm,
Weight^5100kg,
Mixing Cap.^20m³/h,
Total Power^50.5kW]}

{Mixing Drum,[
Mixing Type^ Mechanical,
Drum Vol.^2.45m³,
Mixer Power^15kW]}

{Slurry Tank,[
Tank Vol.^2.5m³,
Tank Power^5.5kW]}

{Booster Pump,[
Power^4kW,
Flow Rate^89m³/h]}

{Screw Conveyor,[
Qty^2 PCS,
Diameter^273mm,
Power^11kW]}

{Control System,[
Control Mode^ Auto/Manual,
Print^√,
Weighing^√,
Auto Batching^√]}
