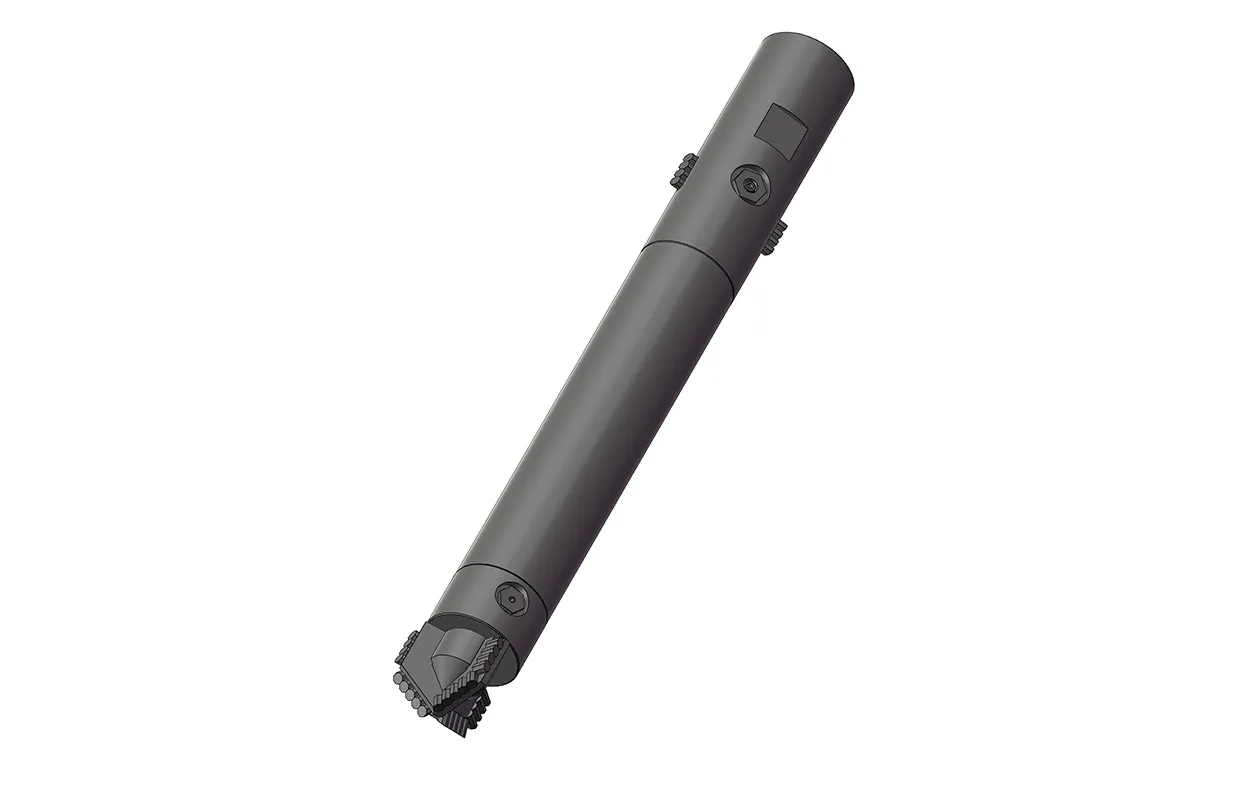

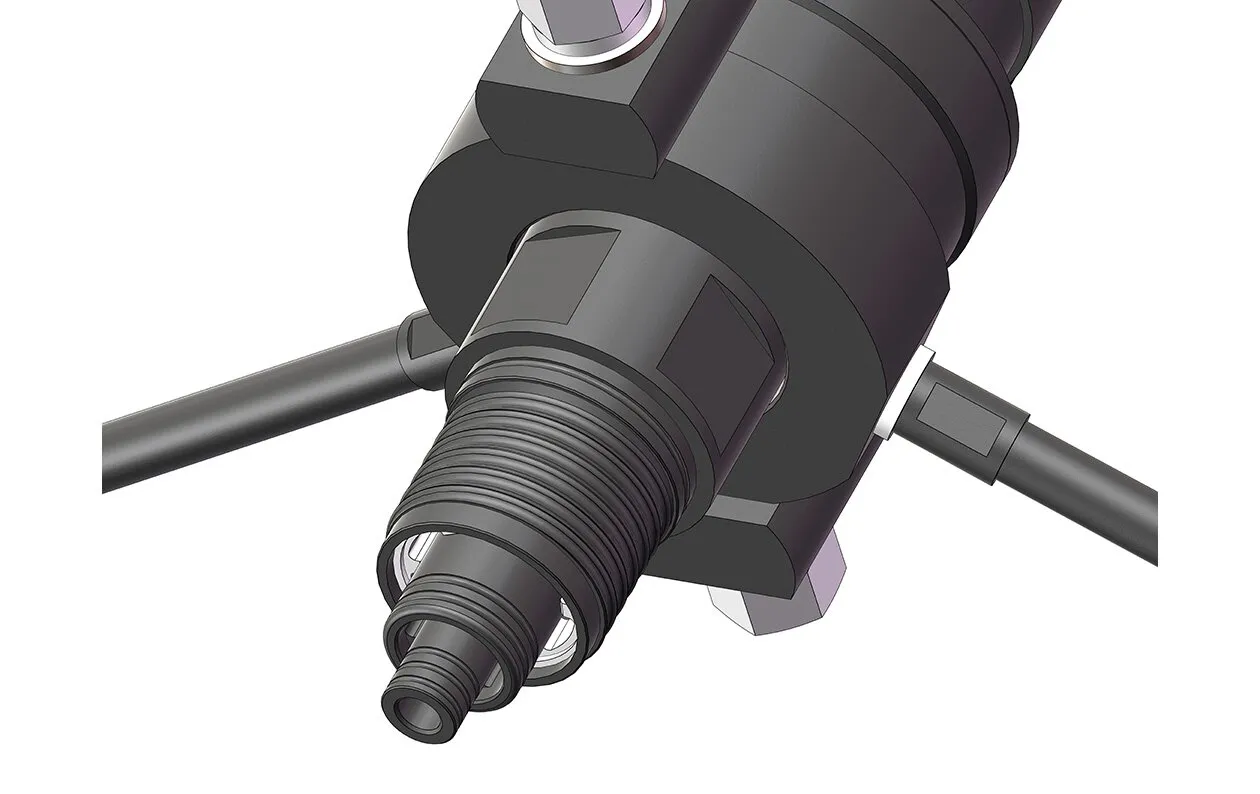

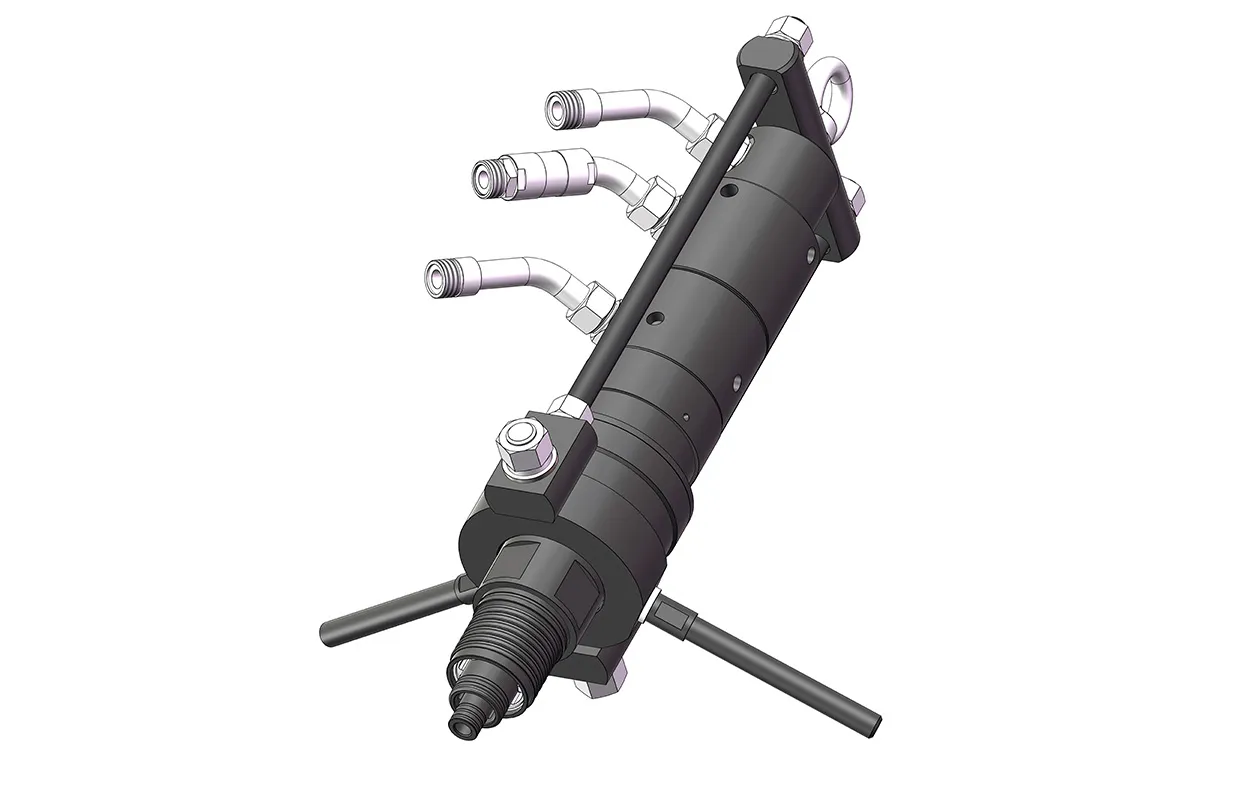

89 Rod (3Jet)

Name: 89 Rod (3Jet)
Brand: Anman Drill
Availability: InStock

G Series Rotary Jet Drilling Tools
A classic series developed by Ammann over 30 years, featuring a complete product lineup and outstanding performance.Upgraded craftsmanship on core components greatly extends service life.Enables precise and efficient construction with lower maintenance costs, easily meeting all rotary jetting application requirements across various formations.

{Torque^≤6000N·M}
{Depth^≤50m}
{Weight^63.334kg}

Torque：≤6000N·M

Depth：≤50m

Weight：63.334kg

APPLICATION SCENARIOS

3040

BECOME A DISTRIBUTOR +8613921112897

PRODUCT OVERVIEW TECHNICAL SPECS RELATED PRODUCTS PROJECT CASES SERVICE POLICIES USER REVIEWS

PRODUCT OVERVIEW

G Series High-Pressure Rotary Jet Drilling Tools.Designed by the founding team of Anman 30 years ago, the G series has evolved through three decades of continuous iteration and has become one of the mainstream rotary jet drilling tool spectrums in China.Well-received by users for its mature accessory technology, reliable service life, compact structure and light weight, the series now includes a full range of models:60 single-tube, 60 double-tube, 73 double-tube, 73 reinforced double-tube, 89 double-tube, 89 triple-tube, 114 double-tube, 127 triple-tube and more.It can meet the requirements of various rotary jet piles ranging from 0.3 to 3 meters in diameter.

{Available in multiple specifications to meet the construction of rotary jet piles from 0.3 to 3 meters in diameter.}
{Adopts top-brand seals for longer service life and higher pressure resistance.}
{The diverter adopts a separated cavity design to reduce maintenance costs.}
{Drill rods are made of high-strength alloy steel with high-strength wave-form threads, which are easy to disassemble and double the service life.}
{The drill bit is wear-resistant and durable, with precisely focused nozzles.It supports dual-mode switching between integrated drilling-jetting and check valve, making construction more efficient.}
{Drill rod couplings use ultra-high strength alloy joints and friction welding technology, greatly improving overall service life and suitable for heavy-duty working conditions.}

•Available in multiple specifications to meet the construction of rotary jet piles from 0.3 to 3 meters in diameter.
•Adopts top-brand seals for longer service life and higher pressure resistance.
•The diverter adopts a separated cavity design to reduce maintenance costs.
•Drill rods are made of high-strength alloy steel with high-strength wave-form threads, which are easy to disassemble and double the service life.
•The drill bit is wear-resistant and durable, with precisely focused nozzles.It supports dual-mode switching between integrated drilling-jetting and check valve, making construction more efficient.
•Drill rod couplings use ultra-high strength alloy joints and friction welding technology, greatly improving overall service life and suitable for heavy-duty working conditions.

TECHNICAL SPECS

{Specs,[
Torque^≤6000N·M ,
Depth^≤50m,
Length^3000 mm，
Weight^63.334kg]}

{Channels,[
^Grout^Air^Water,
Pressure^≤15Mpa^≤ 1Mpa^≤ 40Mpa,
Flow^≤80L/min^≥4m³/min^≤100L/min]}
