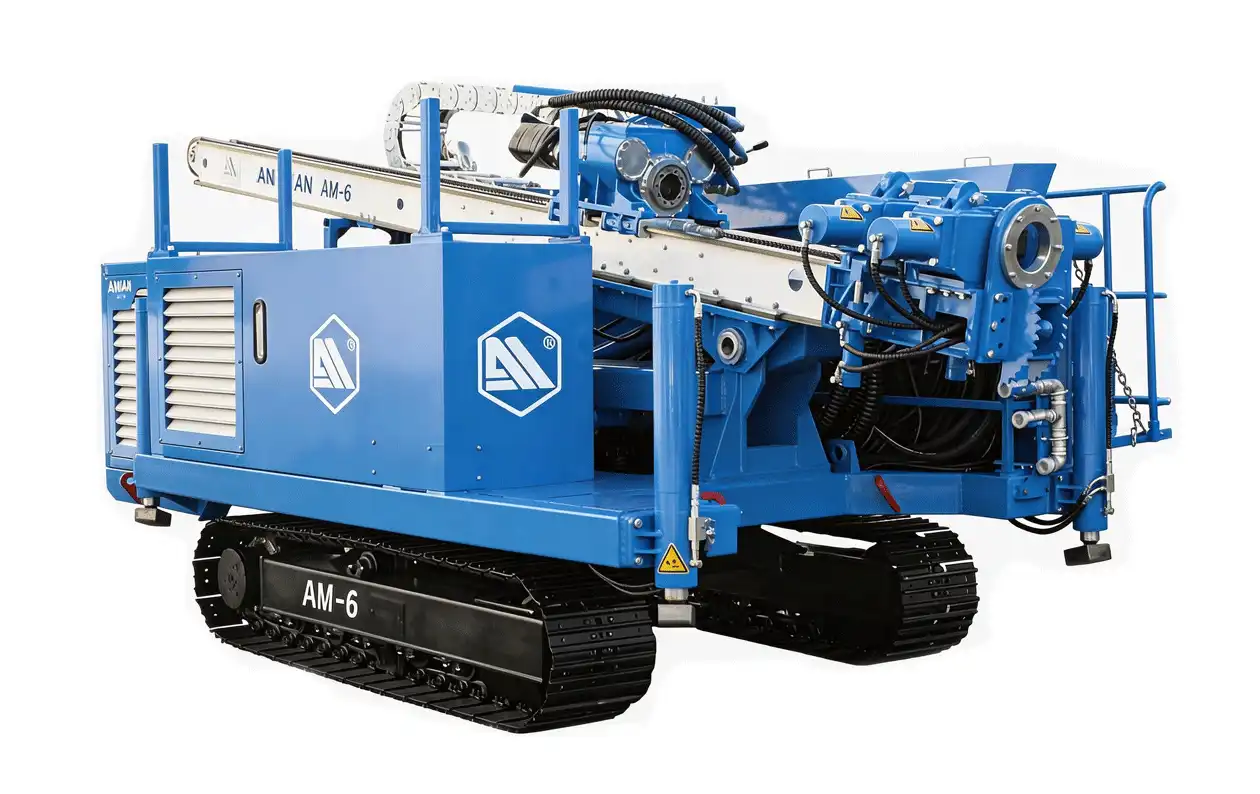

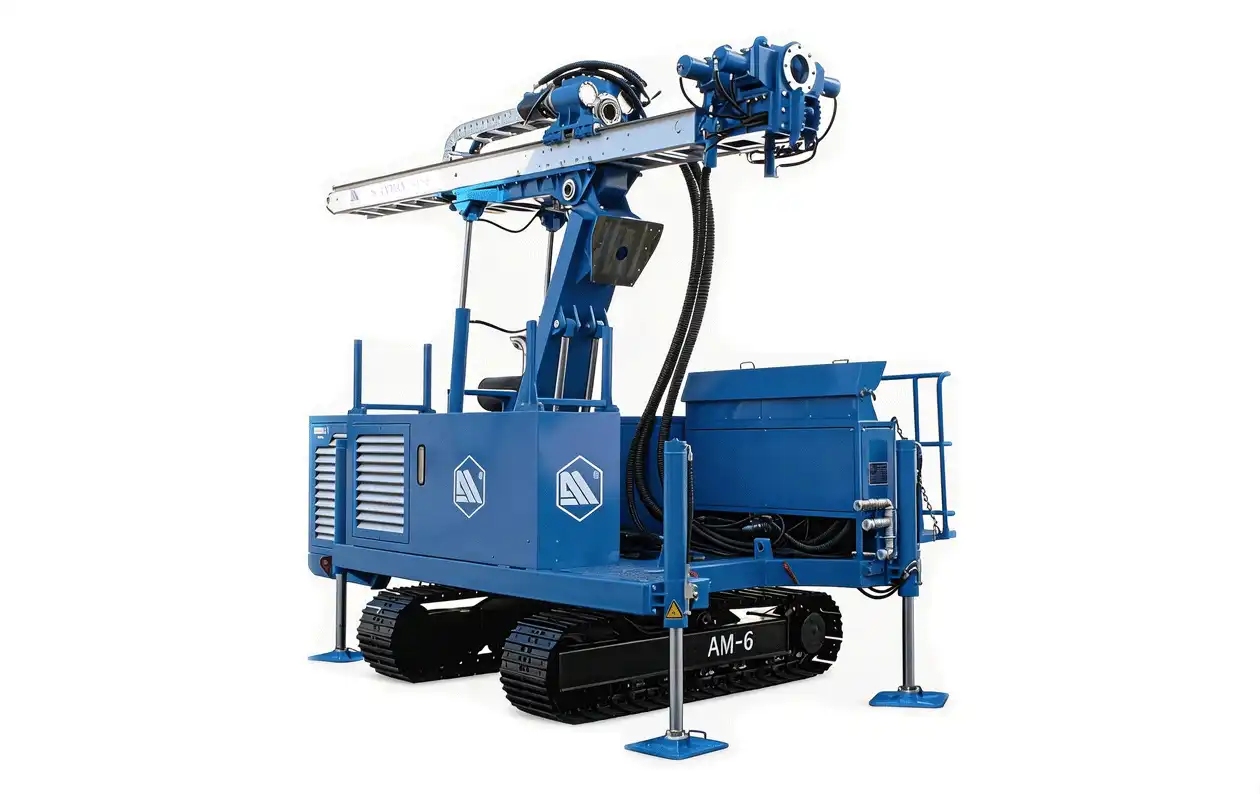

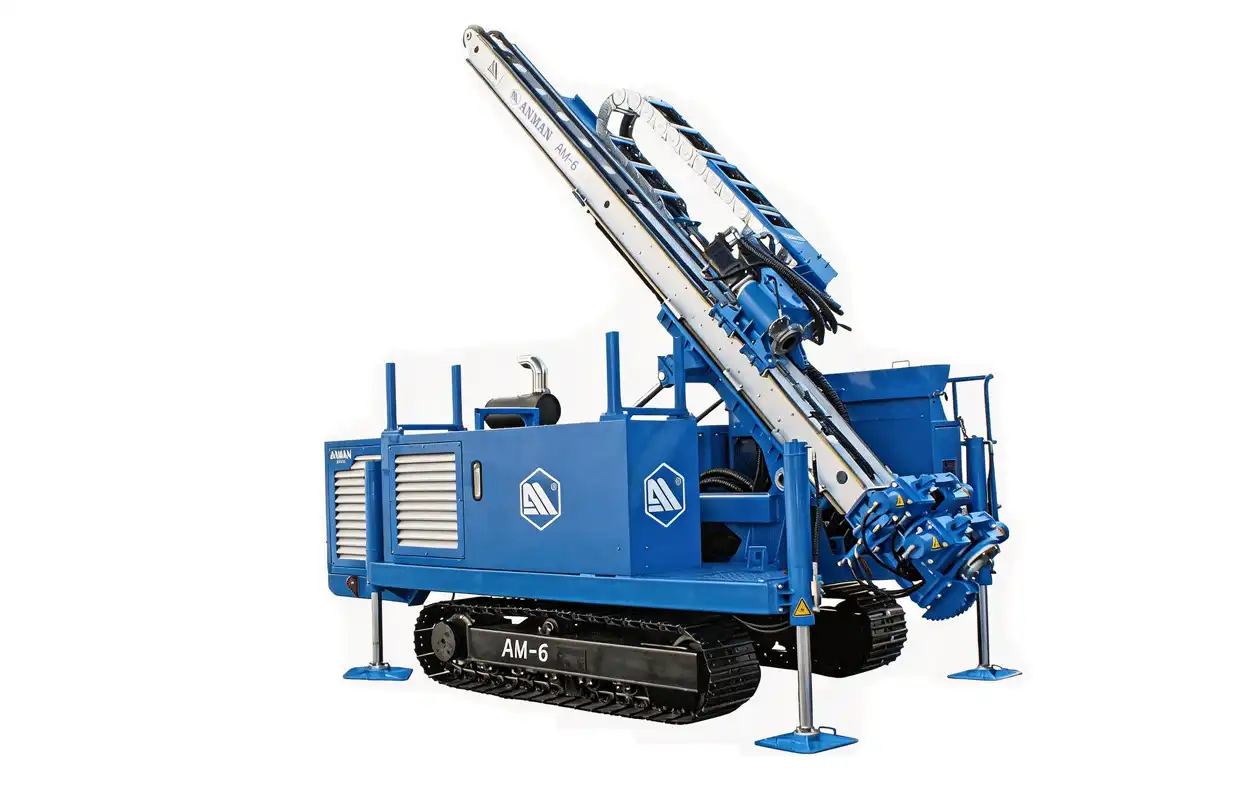

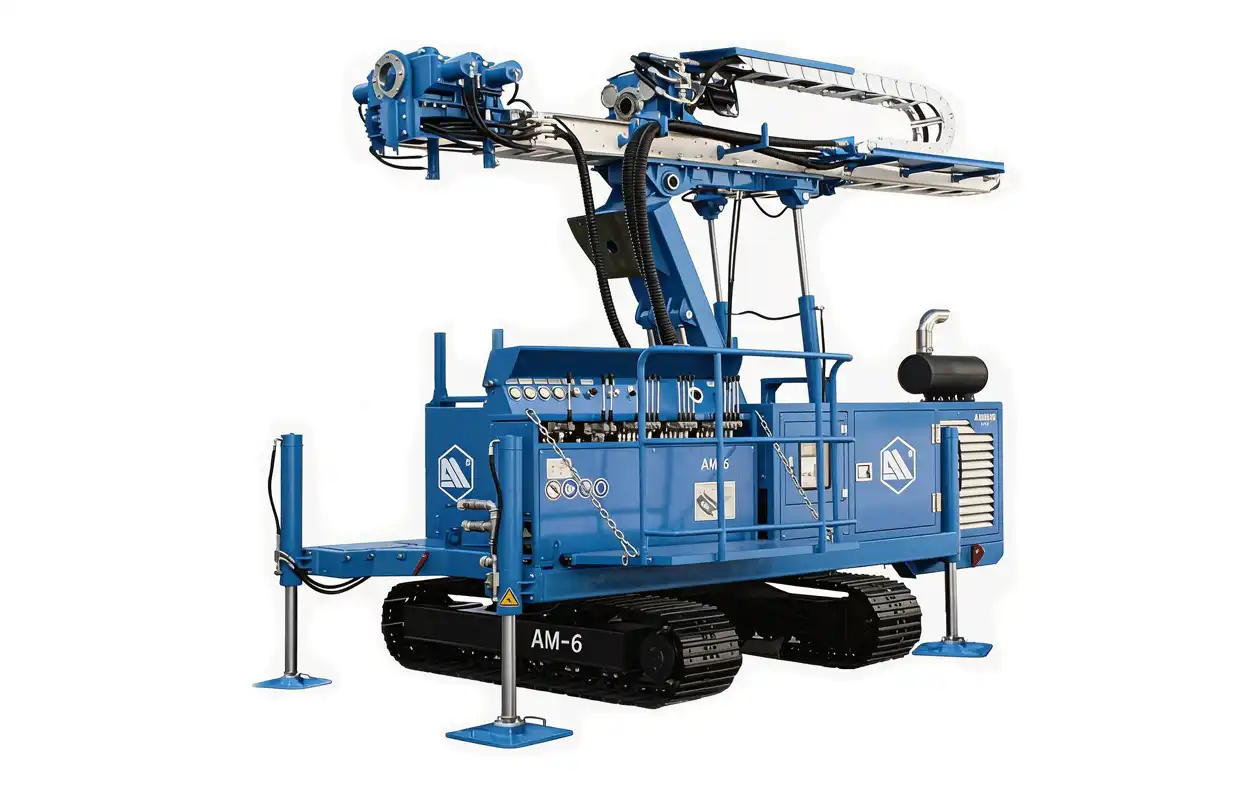

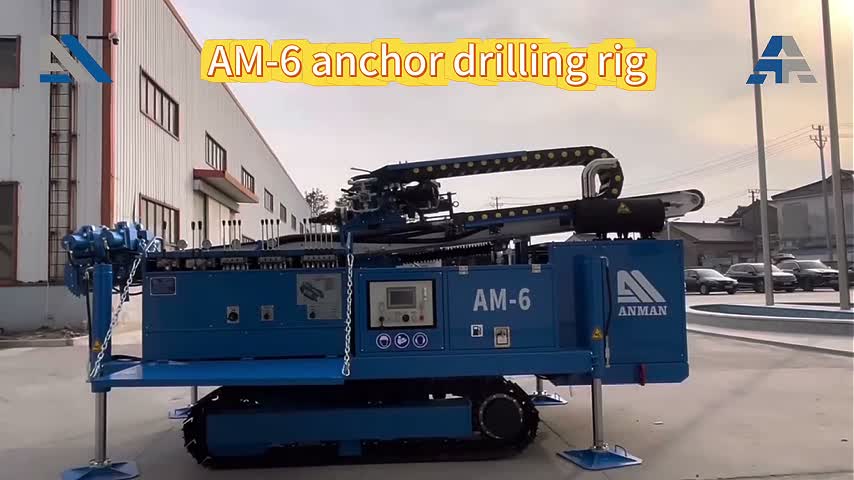

AM-6 Crawler High-Lift Anchor Drill Rig, lightweight and stable, 3.5m lifting height, adaptable to various processes and complex formations, efficiently applied in foundation pit anchoring, jet grouting and dewatering projects.
{Weight^7500kg}
{Eng. power^93kW}
{Max rotary torque^11460N·m}
{Eng. power^93kW}
{Max rotary torque^11460N·m}
Weight：7500kg
Eng. power：93kW
Max rotary torque：11460N·m
APPLICATION SCENARIOS
3041
PRODUCT OVERVIEW
AM-6 (High-Lift Version) features 3.5m high lifting, suitable for high-level horizontal hole construction. Humanized full-hydraulic operation with adjustable torque and speed, adaptable to various formations. Widely used in slope support, tunnel sidewalls, metro deep foundation pits and other high-altitude anchoring and jet grouting projects. A full-hydraulic drill with strong lifting capacity and stable construction.
{Equipped with high-lifting function, lifting up to 3.5m horizontally, suitable for high-altitude horizontal hole construction.}
{Lightweight structure, no settlement on soft ground, strong site adaptability.}
{Turntable structure for convenient anchor cable construction, easy and efficient operation.}
{Optional anchoring and jet grouting tools in various models to meet diverse project needs.}
{Three-wing drill bit (mud desilting), suitable for high-speed drilling in soil layers.}
{Air DTH hammer drilling (air deslagging), suitable for rock and fractured formations.}
{Down-the-hole hydraulic hammer drilling (mud deslagging), suitable for fractured and sandy gravel formations with high water content.}
{Casing drilling and combined drilling of drill pipe & casing, effectively preventing hole collapse in complex formations.}
{Single, double and triple jet grouting, as well as fixed and swing jet grouting, suitable for soft foundation reinforcement.}
{Lightweight structure, no settlement on soft ground, strong site adaptability.}
{Turntable structure for convenient anchor cable construction, easy and efficient operation.}
{Optional anchoring and jet grouting tools in various models to meet diverse project needs.}
{Three-wing drill bit (mud desilting), suitable for high-speed drilling in soil layers.}
{Air DTH hammer drilling (air deslagging), suitable for rock and fractured formations.}
{Down-the-hole hydraulic hammer drilling (mud deslagging), suitable for fractured and sandy gravel formations with high water content.}
{Casing drilling and combined drilling of drill pipe & casing, effectively preventing hole collapse in complex formations.}
{Single, double and triple jet grouting, as well as fixed and swing jet grouting, suitable for soft foundation reinforcement.}
- •Equipped with high-lifting function, lifting up to 3.5m horizontally, suitable for high-altitude horizontal hole construction.
- •Lightweight structure, no settlement on soft ground, strong site adaptability.
- •Turntable structure for convenient anchor cable construction, easy and efficient operation.
- •Optional anchoring and jet grouting tools in various models to meet diverse project needs.
- •Three-wing drill bit (mud desilting), suitable for high-speed drilling in soil layers.
- •Air DTH hammer drilling (air deslagging), suitable for rock and fractured formations.
- •Down-the-hole hydraulic hammer drilling (mud deslagging), suitable for fractured and sandy gravel formations with high water content.
- •Casing drilling and combined drilling of drill pipe & casing, effectively preventing hole collapse in complex formations.
- •Single, double and triple jet grouting, as well as fixed and swing jet grouting, suitable for soft foundation reinforcement.
TECHNICAL SPECS
{Specs,[
Weight^7500kg^,
Transp. size^5500mm*2180mm*2420mm^,
Vert. Build Size^4500mm*2550mm*5500mm^]}
{Track chassis,[
Wheelbase^1980mm^,
Max Width^1955mm^,
Track Width^400mm^，
Max. grade^20°^,
Max. speed^1500m/h^]}
{Hydr. drive,[Diesel engine power^93kW^，
Pressure^20Mpa^,
Sys. Flow^190L/min^，
Hyd. Fluid Vol.^320L^,
Fuel vol.^90L^]}
{Mast,[
Feed stroke^2800-3400mm^,
Overall L.^5500mm^,
Feed Force^35kN^,
Feed Speed^0-10Adjustable、14、46、59m/min^,
Lift Force^70kN^，
Lift Speed^0-5Adjustable、7、23、30m/min^]}
{Gripper,[
Grip Range^φ60-φ200mm^,
Clamp Force^157kN^，
Shackle Torque^15000N·m^]}

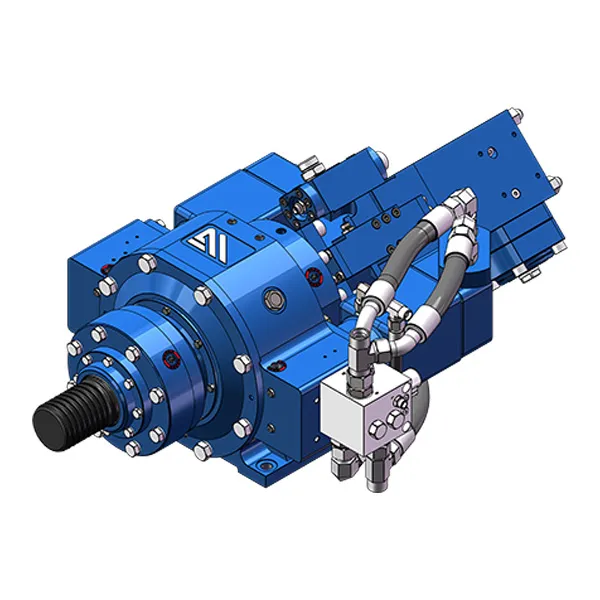

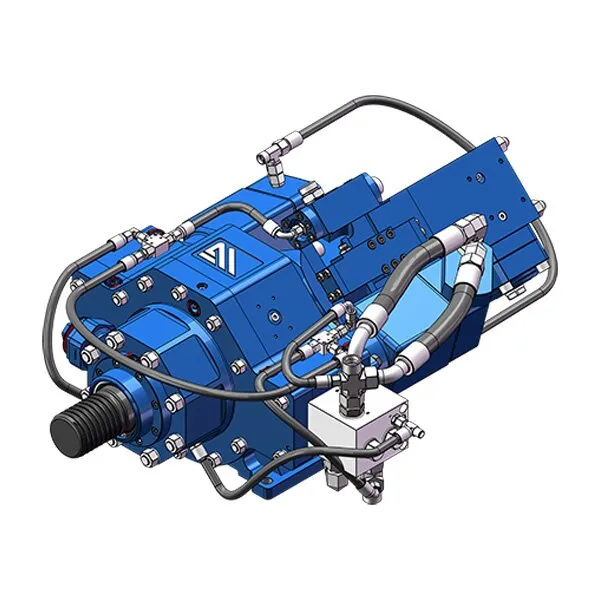

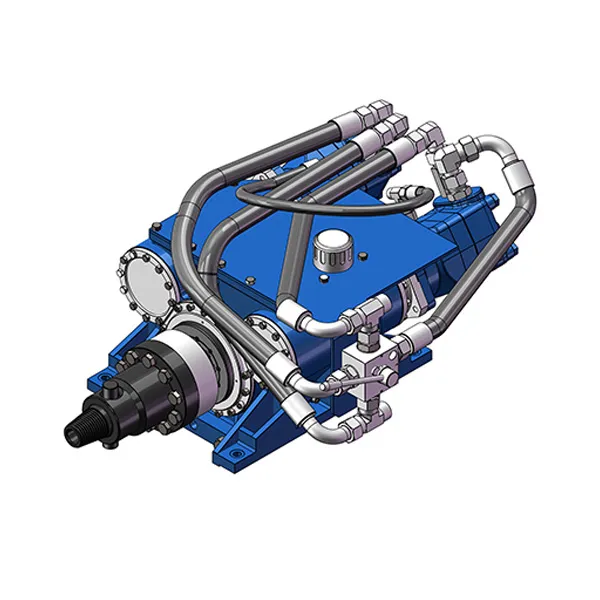

{Rotary params,[^HQ-80^HD-100^,
Max. torque^7000N·m^11460N·m^,
Max. RPM^170r/min^120r/min^，
Max. Impact Energy^/^650N·m^,
Max. Impact Freq.^/^2300bpm^]}
{Op. Parameters,[
Drill Angle^0-90°^,
Rod Dia.^φ60-φ89mm^,
Lift Height^3400mm^]}
Weight^7500kg^,
Transp. size^5500mm*2180mm*2420mm^,
Vert. Build Size^4500mm*2550mm*5500mm^]}
{Track chassis,[
Wheelbase^1980mm^,
Max Width^1955mm^,
Track Width^400mm^，
Max. grade^20°^,
Max. speed^1500m/h^]}
{Hydr. drive,[Diesel engine power^93kW^，
Pressure^20Mpa^,
Sys. Flow^190L/min^，
Hyd. Fluid Vol.^320L^,
Fuel vol.^90L^]}
{Mast,[
Feed stroke^2800-3400mm^,
Overall L.^5500mm^,
Feed Force^35kN^,
Feed Speed^0-10Adjustable、14、46、59m/min^,
Lift Force^70kN^，
Lift Speed^0-5Adjustable、7、23、30m/min^]}
{Gripper,[
Grip Range^φ60-φ200mm^,
Clamp Force^157kN^，
Shackle Torque^15000N·m^]}
{Rotary params,[^HQ-80^HD-100^,
Max. torque^7000N·m^11460N·m^,
Max. RPM^170r/min^120r/min^，
Max. Impact Energy^/^650N·m^,
Max. Impact Freq.^/^2300bpm^]}
{Op. Parameters,[
Drill Angle^0-90°^,
Rod Dia.^φ60-φ89mm^,
Lift Height^3400mm^]}
Specs
| Weight | 7500kg | ||
| Transp. size | 5500mm*2180mm*2420mm | ||
| Vert. Build Size | 4500mm*2550mm*5500mm |
Track chassis
| Wheelbase | 1980mm | ||
| Max Width | 1955mm | ||
| Track Width | 400mm | ||
| Max. grade | 20° | ||
| Max. speed | 1500m/h |
Hydr. drive
| Diesel engine power | 93kW | ||
| Pressure | 20Mpa | ||
| Sys. Flow | 190L/min | ||
| Hyd. Fluid Vol. | 320L | ||
| Fuel vol. | 90L |
Mast
| Feed stroke | 2800-3400mm | ||
| Overall L. | 5500mm | ||
| Feed Force | 35kN | ||
| Feed Speed | 0-10Adjustable、14、46、59m/min | ||
| Lift Force | 70kN | ||
| Lift Speed | 0-5Adjustable、7、23、30m/min |
Gripper
| Grip Range | φ60-φ200mm | ||
| Clamp Force | 157kN | ||
| Shackle Torque | 15000N·m |
Rotary params
| HQ-80 | HD-100 | ||
| Max. torque | 7000N·m | 11460N·m | |
| Max. RPM | 170r/min | 120r/min | |
| Max. Impact Energy | / | 650N·m | |
| Max. Impact Freq. | / | 2300bpm |
Op. Parameters
| Drill Angle | 0-90° | ||
| Rod Dia. | φ60-φ89mm | ||
| Lift Height | 3400mm |
