AM-21

Name: AM-21
Brand: Anman Drill
Availability: InStock

AM-21 Fully Automatic Anchoring Articulated Drilling Rig, High-efficiency & Energy-saving, Safe & Reliable, Ideal for Tunneling and Various Complex Anchoring Constructions.

{Weight^21000kg}
{Eng. power^194kW}
{Max rotary torque^24480N·m}

Weight：21000kg

Eng. power：194kW

Max rotary torque：24480N·m

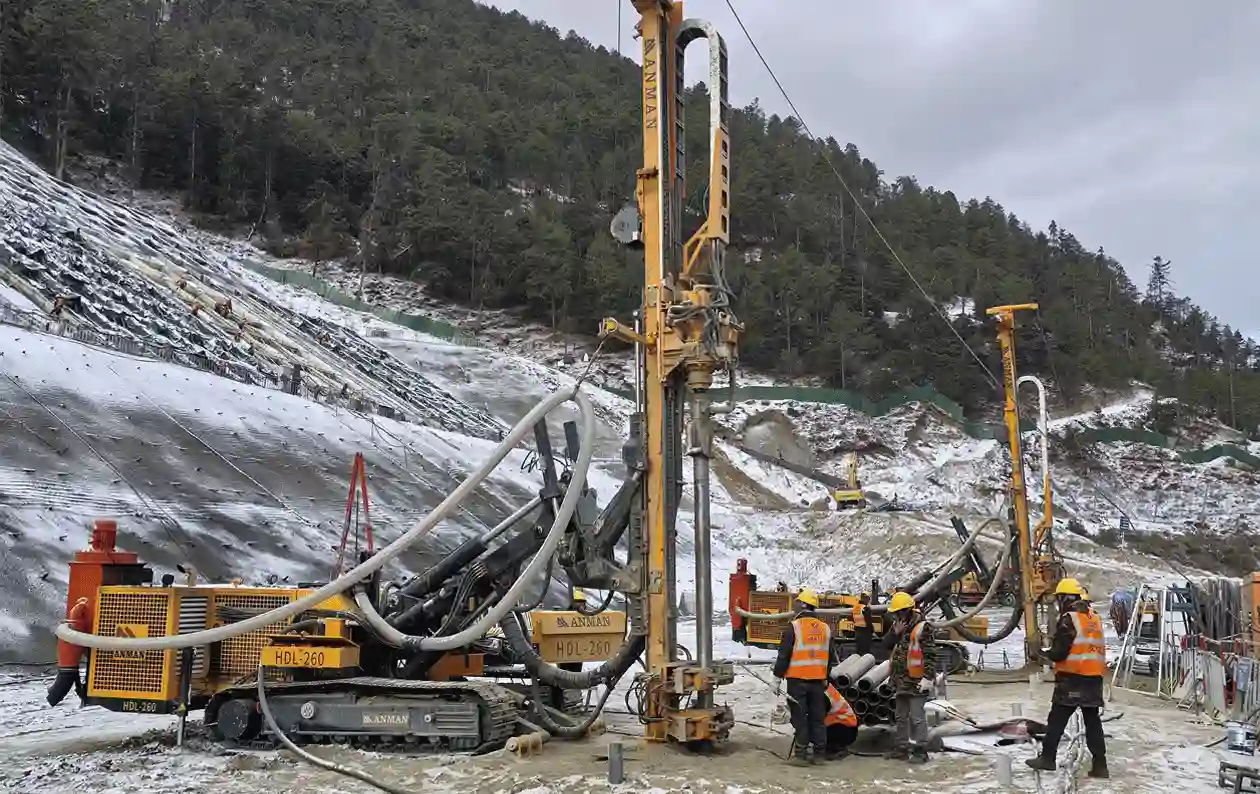

APPLICATION SCENARIOS

3041

BECOME A DISTRIBUTOR +8613921112897

PRODUCT OVERVIEW TECHNICAL SPECS RELATED PRODUCTS PROJECT CASES SERVICE POLICIES USER REVIEWS

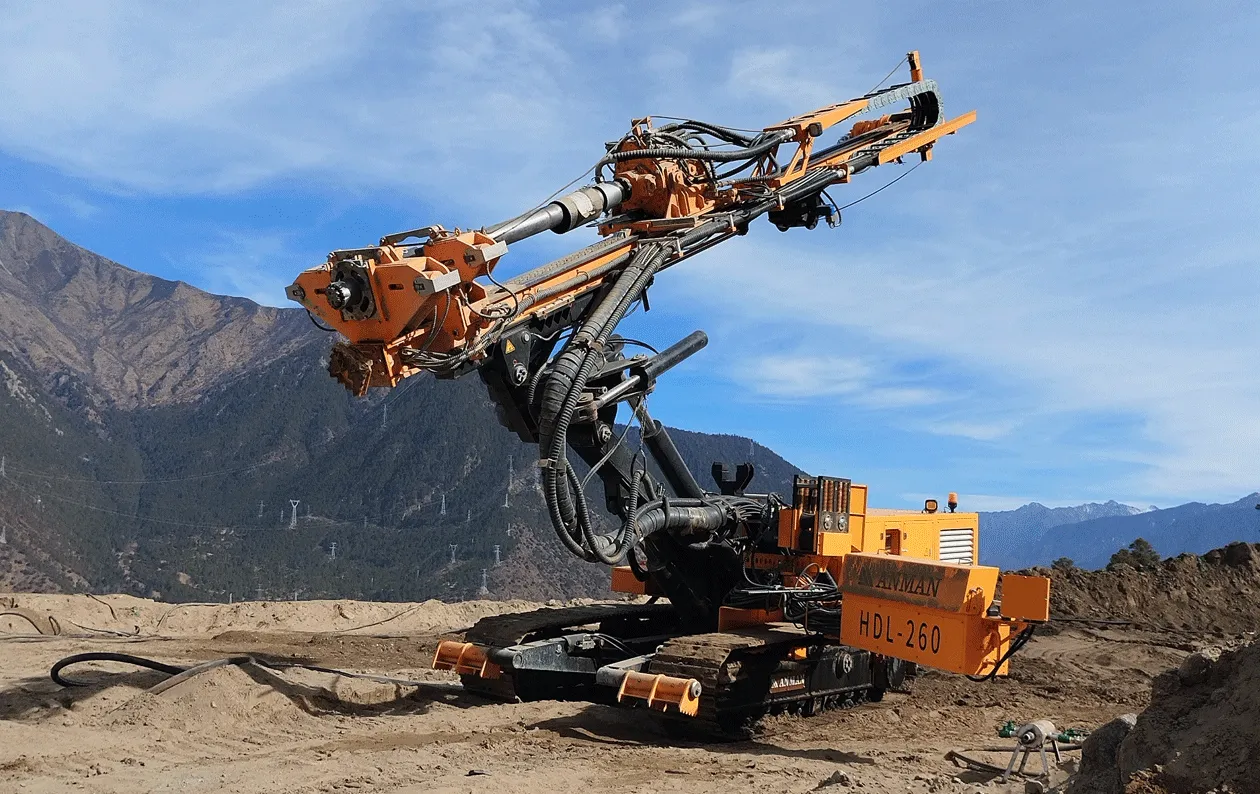

PRODUCT OVERVIEW

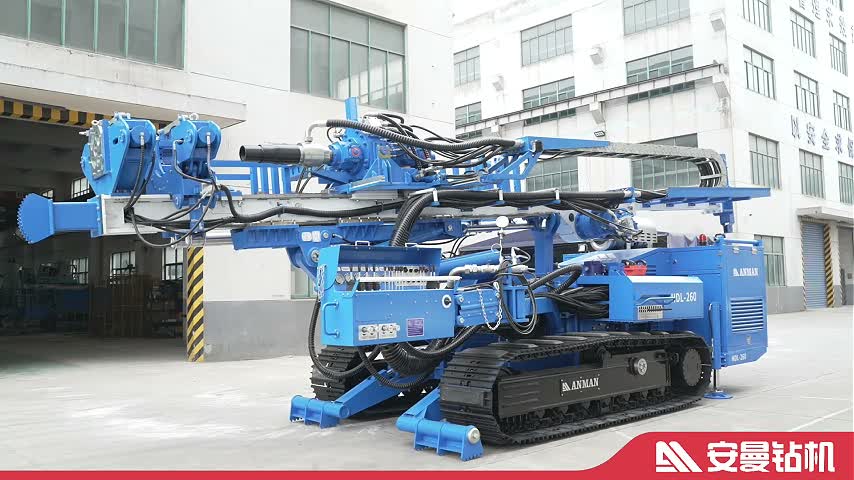

AM-21 is a fully articulated drilling rig with optional automatic rod handling system, greatly reducing labor intensity while improving construction efficiency and safety. Equipped with fully articulated angle adjustment, remote control travel and load-sensing hydraulic system, it adapts to complex working conditions and multi-angle drilling. Powered by turbocharged diesel engine and international brand core components, it ensures high reliability and long service life. Widely used in tunnel pipe roofing, anchoring, high-pressure jet grouting and micro-piling projects, especially suitable for projects demanding high automation, precision and labor cost control.

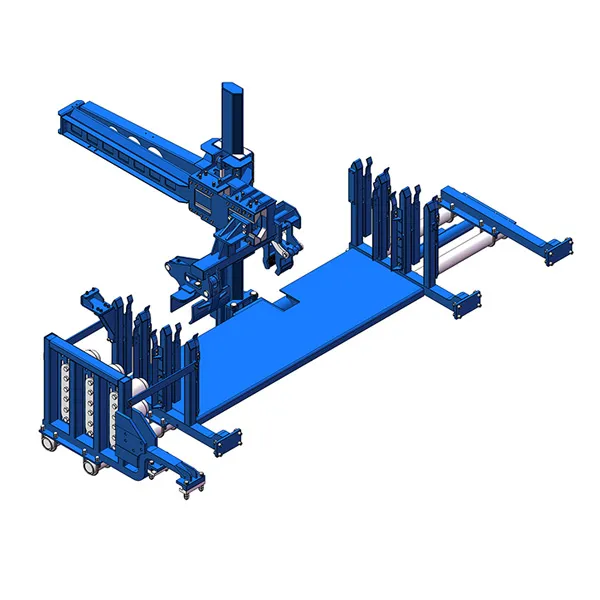

{Equipped with automatic rod handling mechanism, it can automatically assist in disassembling drill rods and casings, reducing labor input and greatly improving construction efficiency.}
{Fully articulated angle adjustment mechanism for flexible and convenient angle regulation, suitable for various construction scenarios at home and abroad, especially meeting tunnel construction requirements.}
{High torque, high speed and strong power enable fast drilling in sandy gravel, crushed stone and other collapse-prone formations, ensuring hole quality. Efficient construction in high water-bearing strata without down-the-hole hammer.}
{Drilling tools transmit impact energy from outside to inside, preventing sticking and burying accidents, thus reducing construction costs and risks.}
{Remote control travel + crawler swing design, strong passability on complex terrain, safe and convenient construction.}
{Load-sensing hydraulic system + turbocharged diesel engine delivers strong power, energy saving and high efficiency. Euro 5 engine is optional to meet overseas environmental standards.}

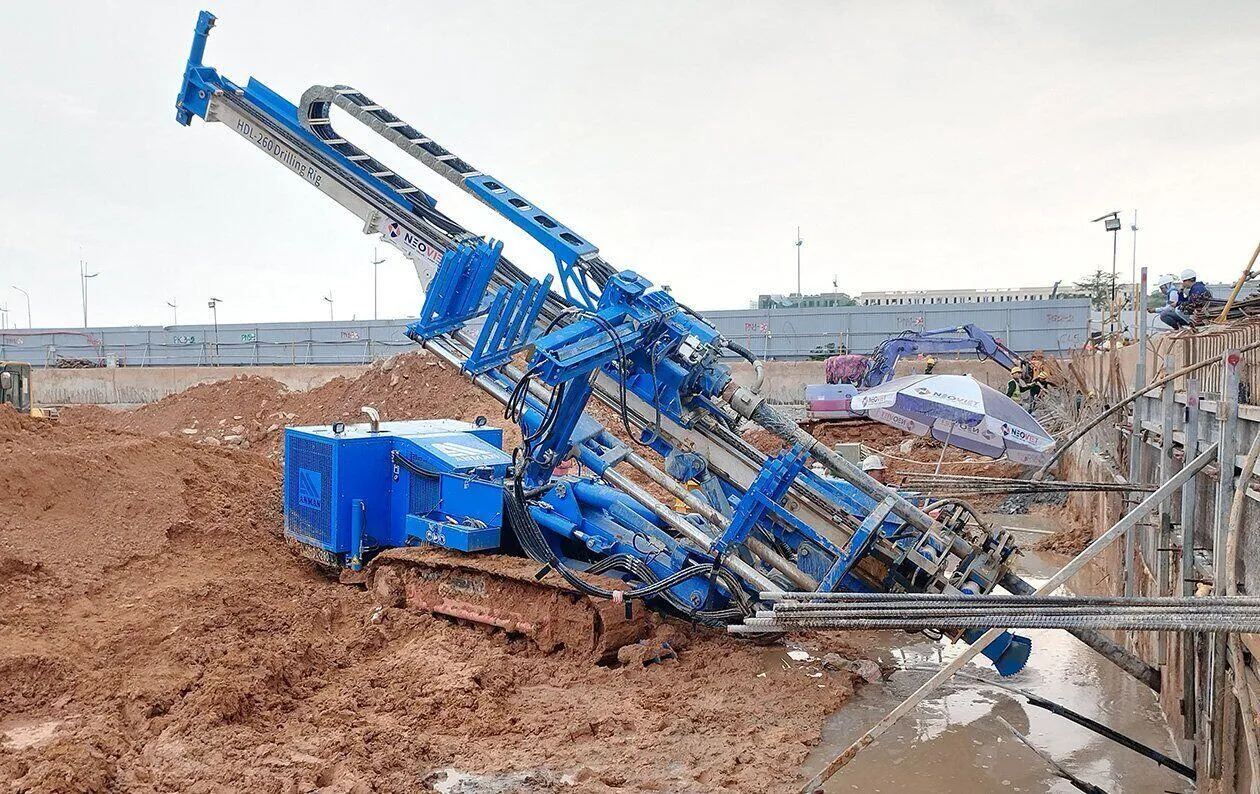

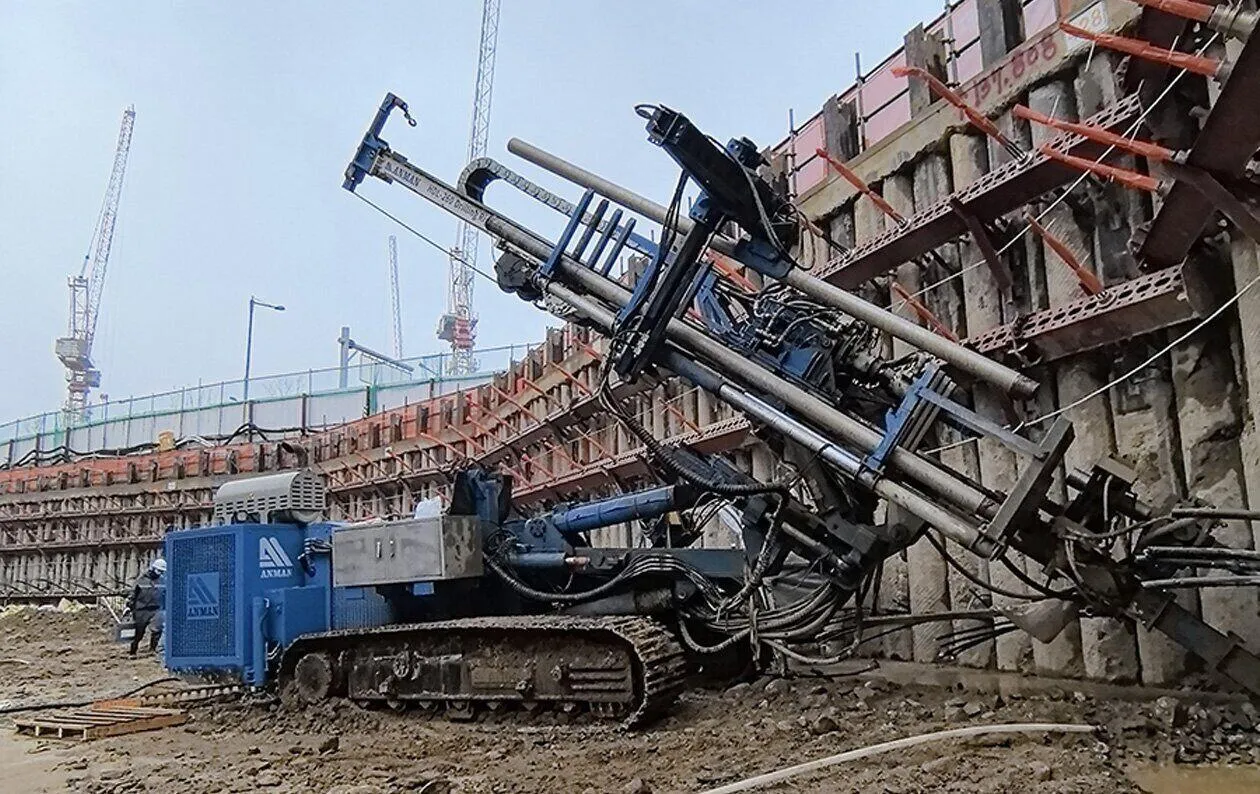

{Construction applications: tunnel advanced exploration holes, horizontal coring, pipe roofing, S-JET, high-precision full casing pilot holes, anchoring, high-pressure jet grouting, micro-piling and other engineering constructions.}

•Equipped with automatic rod handling mechanism, it can automatically assist in disassembling drill rods and casings, reducing labor input and greatly improving construction efficiency.
•Fully articulated angle adjustment mechanism for flexible and convenient angle regulation, suitable for various construction scenarios at home and abroad, especially meeting tunnel construction requirements.
•High torque, high speed and strong power enable fast drilling in sandy gravel, crushed stone and other collapse-prone formations, ensuring hole quality. Efficient construction in high water-bearing strata without down-the-hole hammer.
•Drilling tools transmit impact energy from outside to inside, preventing sticking and burying accidents, thus reducing construction costs and risks.
•Remote control travel + crawler swing design, strong passability on complex terrain, safe and convenient construction.
•Load-sensing hydraulic system + turbocharged diesel engine delivers strong power, energy saving and high efficiency. Euro 5 engine is optional to meet overseas environmental standards.
•Construction applications: tunnel advanced exploration holes, horizontal coring, pipe roofing, S-JET, high-precision full casing pilot holes, anchoring, high-pressure jet grouting, micro-piling and other engineering constructions.

TECHNICAL SPECS

{Machine Parameters,[
Weight^21000kg^,
Transport dimension^9000mm*2600mm*3150mm^,
Vertical working dimension^8043mm*2600mm*9000mm^]}

{Undercarriage,[
Wheel base^2830mm^,
Max width^2600mm^,
Pad width^600mm^,
Max climbing ability^20°^，
Max Travel Speed^2000m/h^]}

{Power pack,[
Diesel engine power^194kW^,
System pressure^28MPa^,
System flow^234+180L/min^,
Oil tank^580L^，
Fuel tank^300L^]}

{Mast,[Feed stroke^5750mm^,Feed force^80kN^,Feeding speed^0-10、50m/min^,Retract force^80kN^,Retract speed^0-10、50m/min^]}

{Clamps,[Clamp range^φ73-φ350mm^,Clamp force^235.5kN^,Max breaking torque^68500N·m^]}

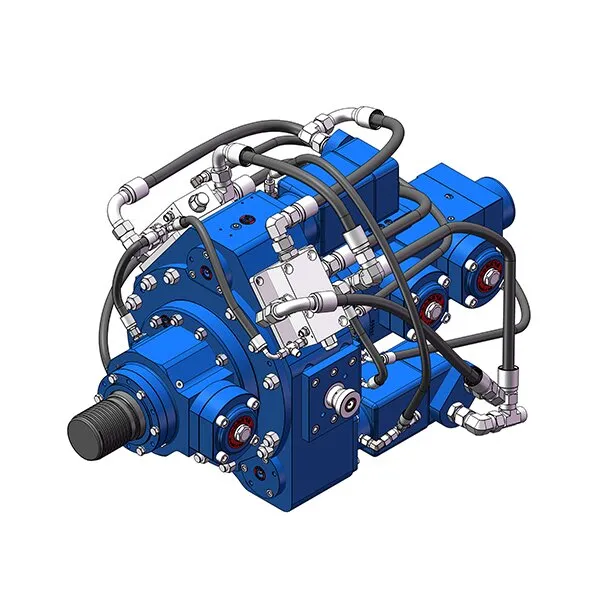

{Drifter parameters,[^HD-250^HD-120X^HQ-250^HQ-350 & HD-100X,Max rotary torque^24480N·m^16425N·m^10000N·m^35000N·m & 8200N·m^,Max rotary speed^84r/min^308r/min^85r/min^63r/min & 170r/min^,Max impact power^1180N·m^650N·m^/^/ & 650N·m^,Max impact frequency^2000bpm^2300bpm^/^/ & 2300bpm^]}

Machine Parameters

Weight	21000kg
Transport dimension	9000mm2600mm3150mm
Vertical working dimension	8043mm2600mm9000mm

Undercarriage

Wheel base	2830mm
Max width	2600mm
Pad width	600mm
Max climbing ability	20°
Max Travel Speed	2000m/h

Power pack

Diesel engine power	194kW
System pressure	28MPa
System flow	234+180L/min
Oil tank	580L
Fuel tank	300L

Mast

Feed stroke	5750mm
Feed force	80kN
Feeding speed	0-10、50m/min
Retract force	80kN
Retract speed	0-10、50m/min

Clamps

Clamp range	φ73-φ350mm
Clamp force	235.5kN
Max breaking torque	68500N·m

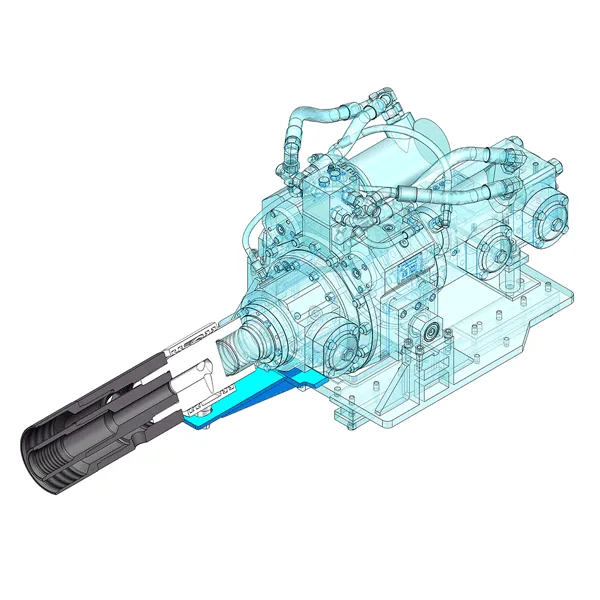

Drifter parameters

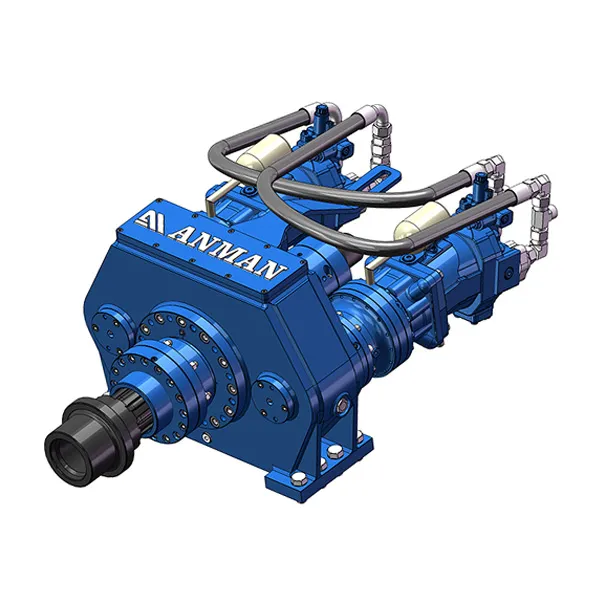

	HD-250	HD-120X	HQ-250	HQ-350 & HD-100X
Max rotary torque	24480N·m	16425N·m	10000N·m	35000N·m & 8200N·m
Max rotary speed	84r/min	308r/min	85r/min	63r/min & 170r/min
Max impact power	1180N·m	650N·m	/	/ & 650N·m
Max impact frequency	2000bpm	2300bpm	/	/ & 2300bpm
