AM-17

Name: AM-17
Brand: Anman Drill
Availability: InStock

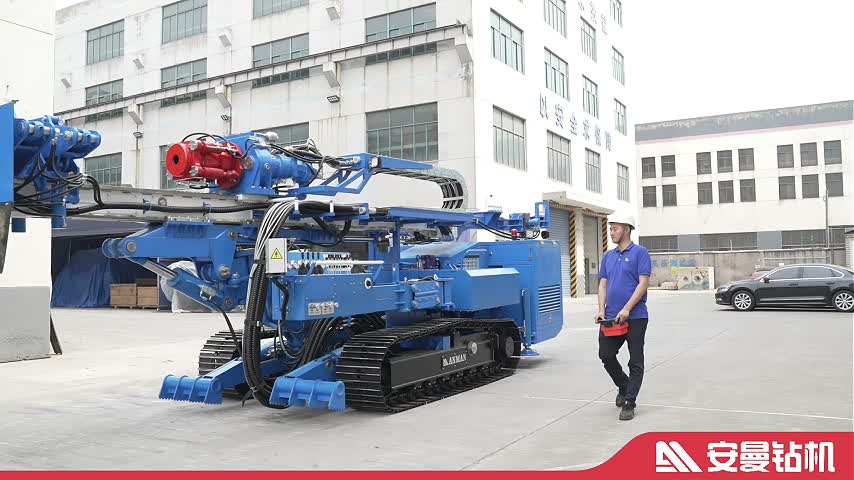

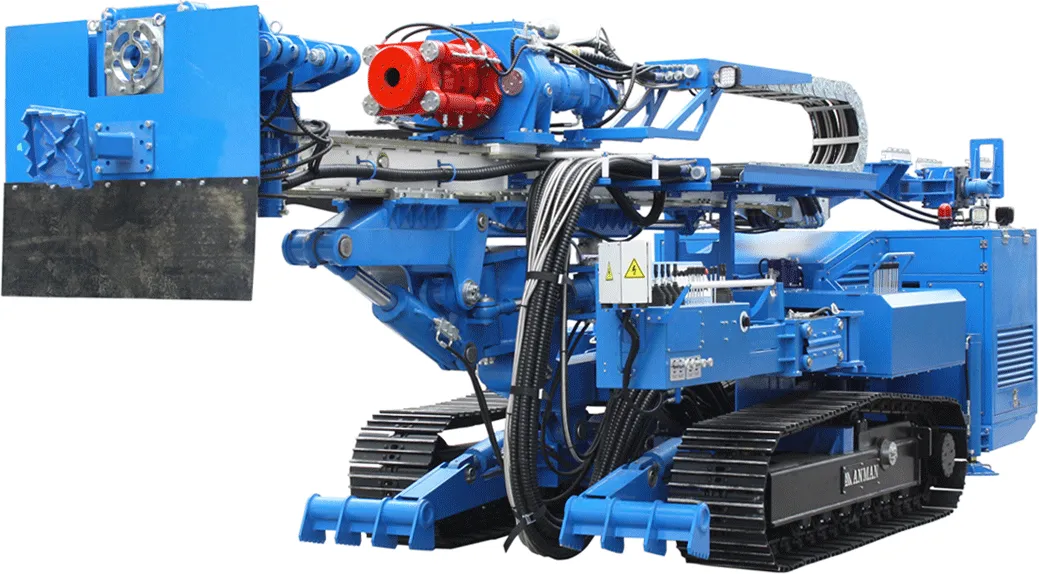

AM-17 Fully Articulated Multi‑functional Drilling Rig, specially designed for jet grouting. Equipped with articulation angle adjustment, remote‑controlled crawler, load‑sensing hydraulic system, 194kW powerful engine, 80kN feeding and hoisting force and high‑torque clamping. Efficient, stable, safe and energy‑saving, ideal for all jet grouting applications.

{Weight^16000-18000kg}
{Eng. power^194kW}
{Max rotary torque^25000N·m}

Weight：16000-18000kg

Eng. power：194kW

Max rotary torque：25000N·m

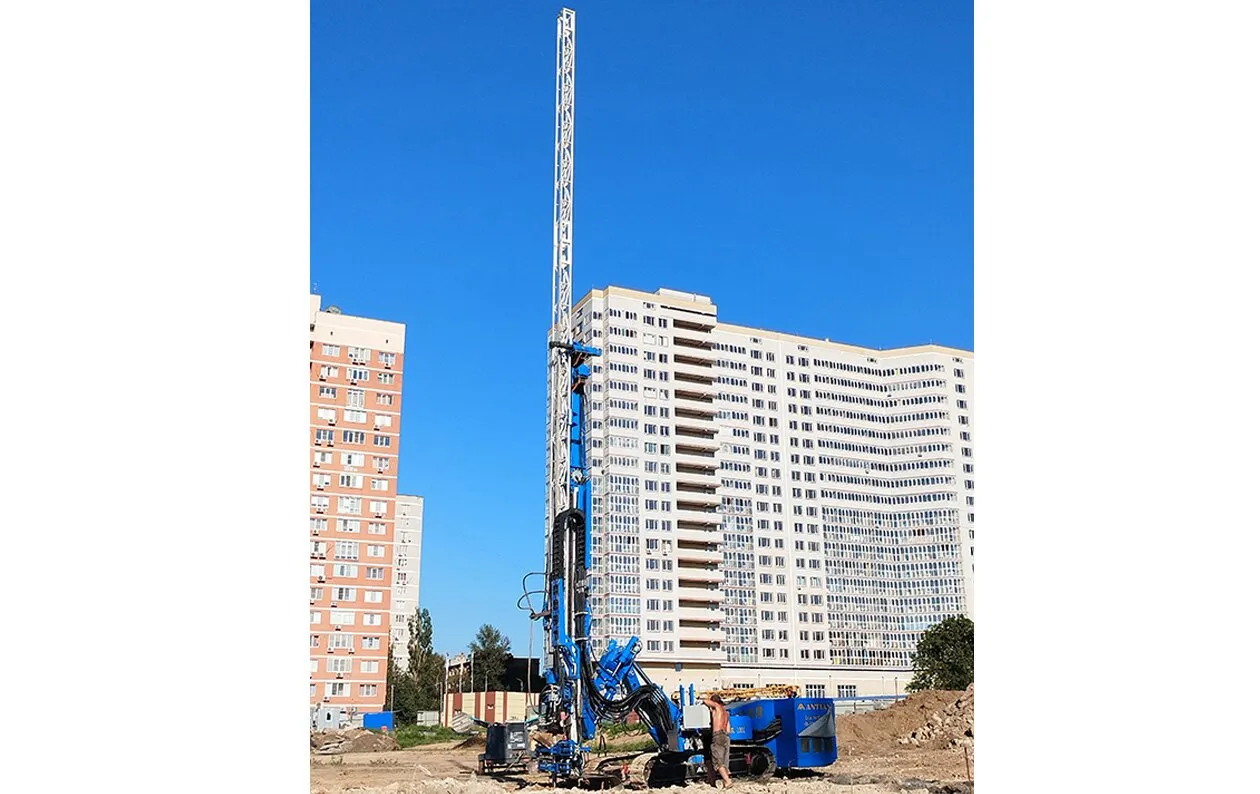

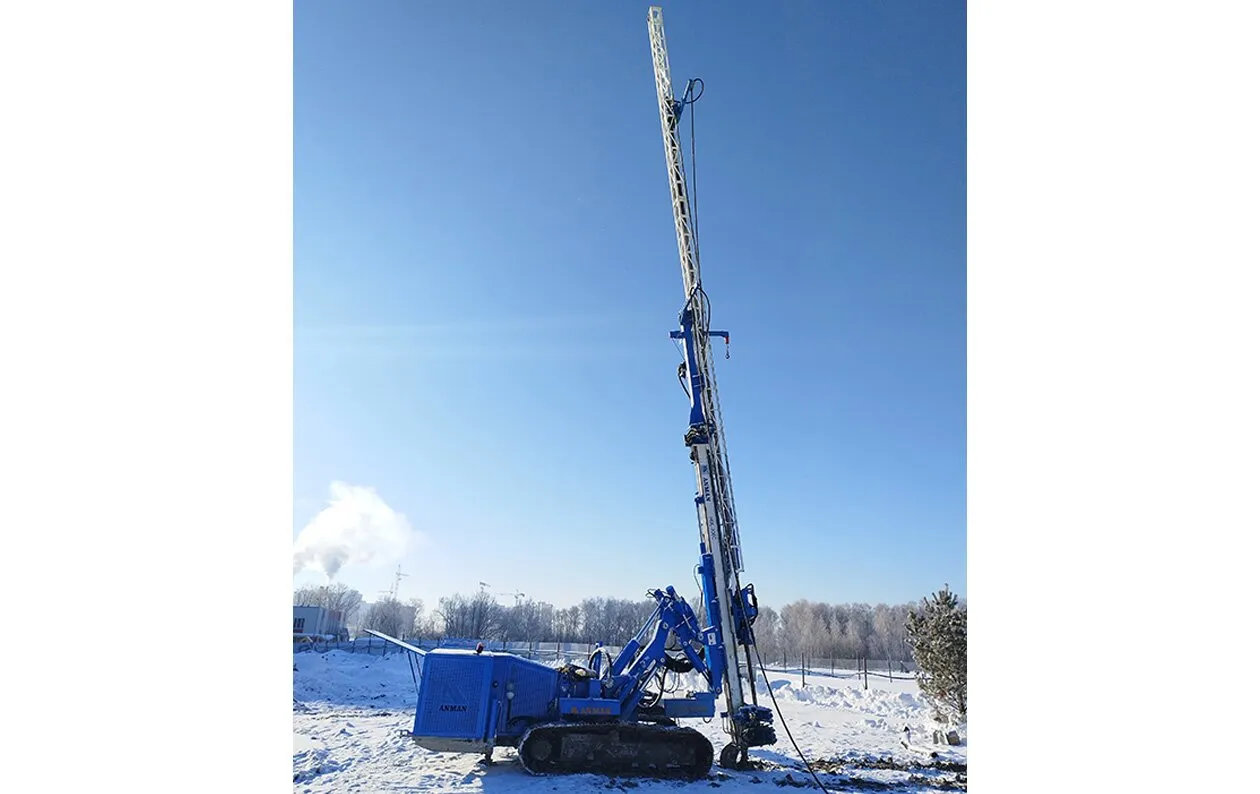

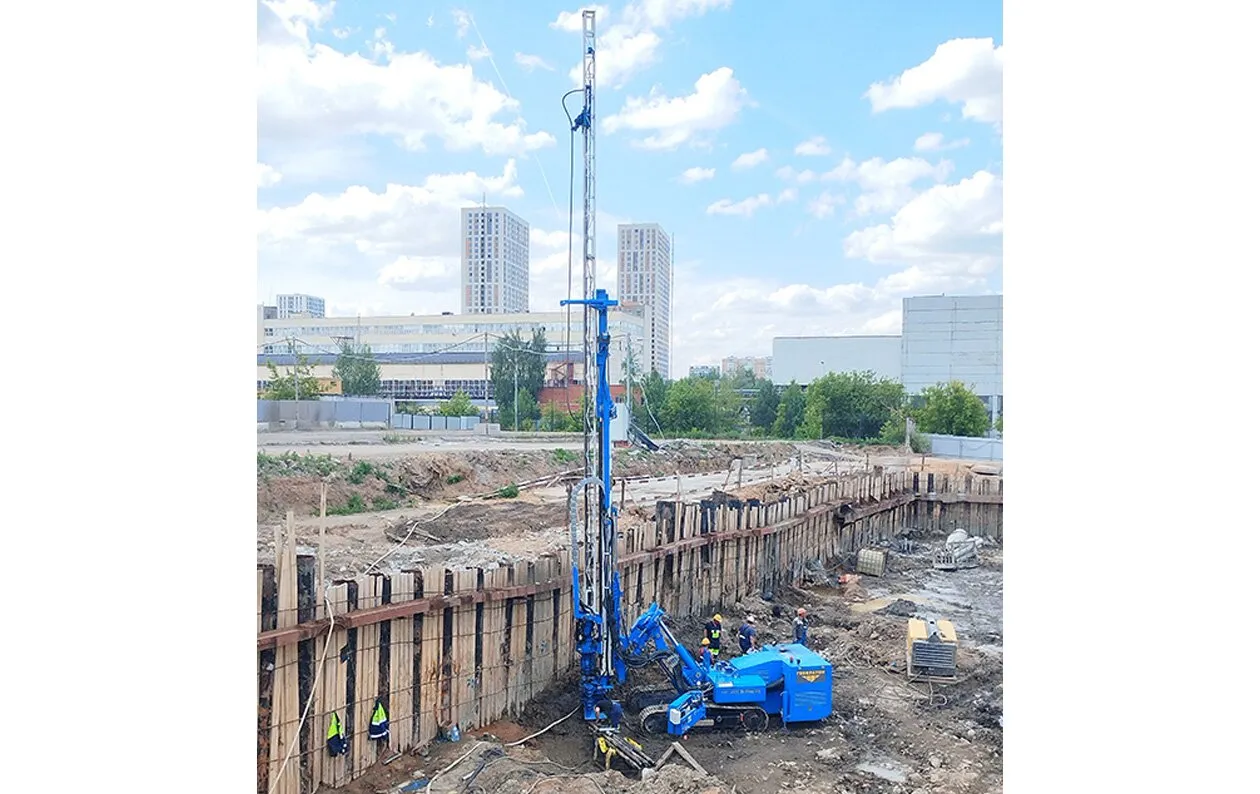

APPLICATION SCENARIOS

3040

BECOME A DISTRIBUTOR +8613921112897

PRODUCT OVERVIEW TECHNICAL SPECS RELATED PRODUCTS PROJECT CASES SERVICE POLICIES USER REVIEWS

PRODUCT OVERVIEW

AM-17 adopts a fully articulated angle-adjustment mechanism for flexible multi-angle drilling, ideal for non-standard hole construction in tunnels and slopes. Remote-controlled travel and crawler swing angle improve slope adaptability and operational safety. Equipped with load-sensing hydraulic system and high-altitude diesel engine, it offers high energy efficiency and strong environmental adaptability. Supporting top drive, jet grouting, anchoring and other processes, it is suitable for tunnel pipe roofing, micro-piles, horizontal drilling and high-pressure jet grouting, providing users with a highly flexible and stable multi-functional construction solution.

{Fully articulated angle-adjustment mechanism for flexible and convenient angle regulation, suitable for various construction scenarios at home and abroad, especially for tunnel construction.}
{High torque, high speed, strong power. Suitable for complex and collapse-prone formations. Efficient hole forming; no down-the-hole hammer required for high water content formations.}
{Drilling tools transmit impact energy from outside to inside, reducing pipe sticking, burying and other downhole accidents, thus lowering construction cost and risk.}
{Remote control travel + crawler swing angle design, strong trafficability on complex terrain, safe and convenient construction.}
{Load-sensing hydraulic system + turbocharged diesel engine, powerful, energy-saving and efficient. Euro 5 engine available for overseas environmental standards.}
{Construction applications: tunnel advanced exploration holes, horizontal coring, pipe roofing, S-JET, high-precision full casing pilot holes, anchoring, jet grouting, micro-piles and other engineering constructions.}

•Fully articulated angle-adjustment mechanism for flexible and convenient angle regulation, suitable for various construction scenarios at home and abroad, especially for tunnel construction.
•High torque, high speed, strong power. Suitable for complex and collapse-prone formations. Efficient hole forming; no down-the-hole hammer required for high water content formations.
•Drilling tools transmit impact energy from outside to inside, reducing pipe sticking, burying and other downhole accidents, thus lowering construction cost and risk.
•Remote control travel + crawler swing angle design, strong trafficability on complex terrain, safe and convenient construction.
•Load-sensing hydraulic system + turbocharged diesel engine, powerful, energy-saving and efficient. Euro 5 engine available for overseas environmental standards.
•Construction applications: tunnel advanced exploration holes, horizontal coring, pipe roofing, S-JET, high-precision full casing pilot holes, anchoring, jet grouting, micro-piles and other engineering constructions.

TECHNICAL SPECS

{Machine Parameters,[
Weight^16000-18000kg^,
Transport dimension^10000mm*2400mm*2750mm^,
Vertical working dimension^6600mm*2400mm*21800mm^]}

{Undercarriage,[
Wheel base^2525mm^,
Max width^2400mm^,
Pad width^500mm^,
Max climbing ability^20°^，
Max Travel Speed^1600m/h^]}

{Power pack,[
Eng. power^194kW^,
System pressure^28MPa^,
System flow^234+180L/min^,
Oil tank^580L^，
Fuel tank^300L^]}

{Mast,[Feed stroke^4100mm^,Total length^7185mm^,Feed force^80kN^,Feeding speed^0-50m/min^,Retract force^80kN,Retract speed^0-50m/min^]}

{Clamps,[Clamp range^φ73-φ350mm^,Clamp force^235kN^,Max breaking torque^68500N·m^]}

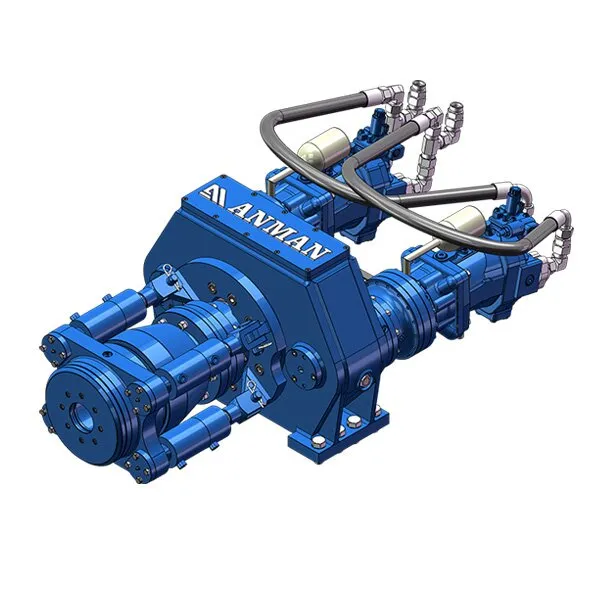

{Drifter parameters,[^HT-100^HQ-250,Max rotary torque^10000N·m^25000N·m,Max rotary speed^85r/min^150r/min]}
