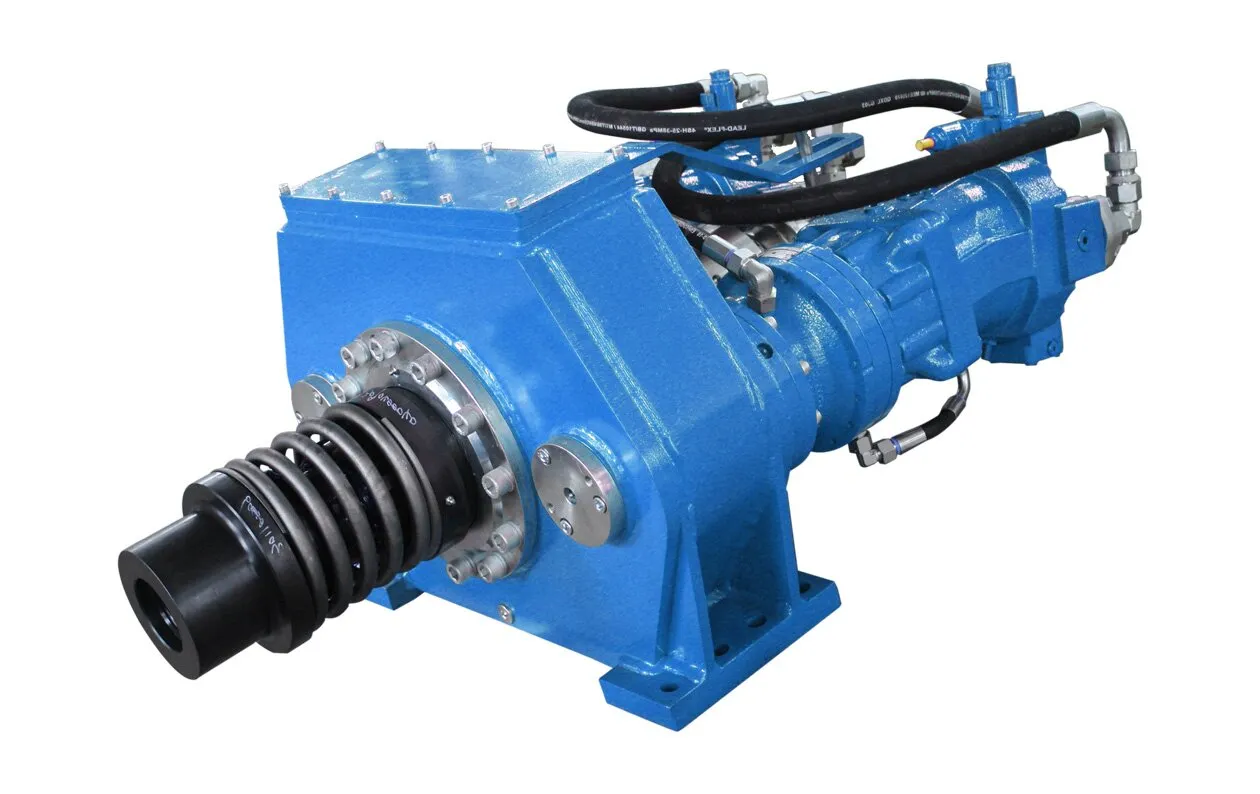

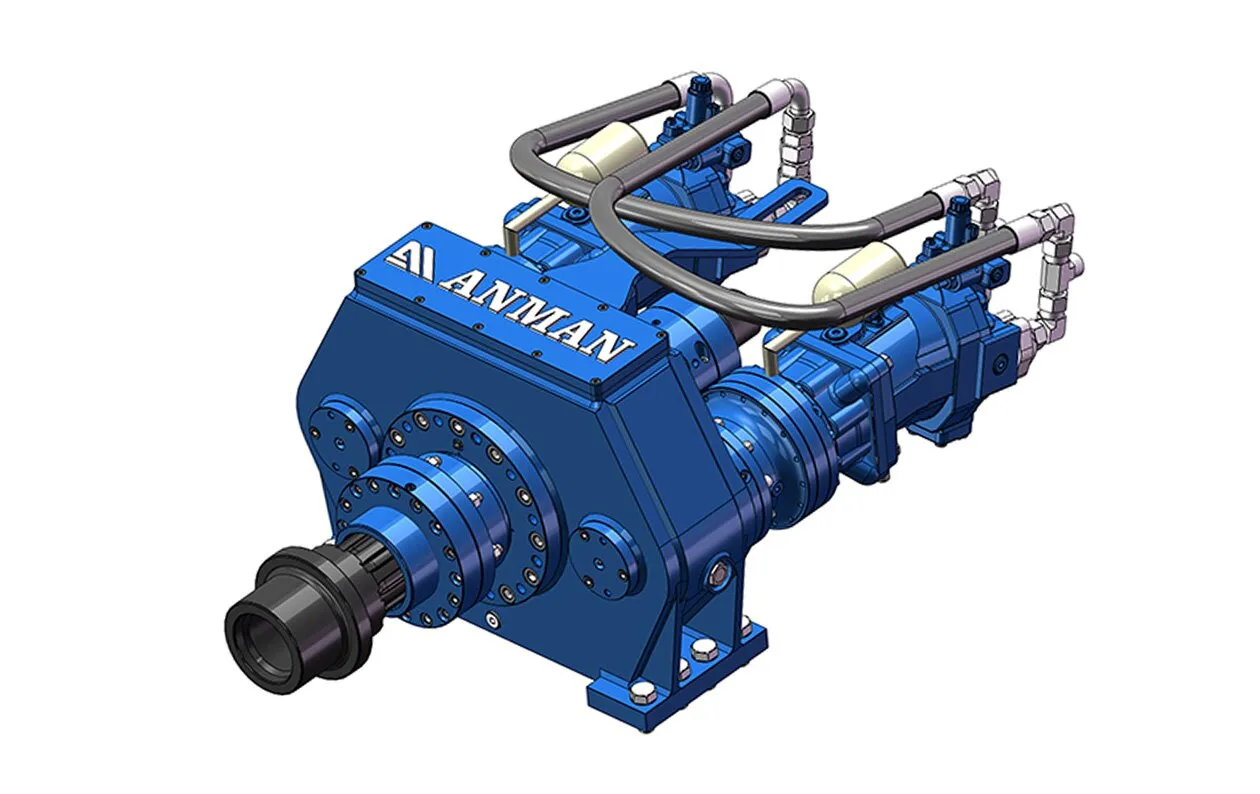

HQ-250
HQ250 Power Head is a high-performance hydraulic rotary power head specially designed for projects such as anchoring, jet grouting, tunnel pipe shed, geological exploration, slope support and foundation reinforcement, which improves construction efficiency, reduces failure frequency and saves maintenance costs.
{Speed^150r/min}
{Slewing torque^25000N·m}
{Weight^936kg}
{Slewing torque^25000N·m}
{Weight^936kg}
Speed：150r/min
Slewing torque：25000N·m
Weight：936kg
APPLICATION SCENARIOS
3041
PRODUCT OVERVIEW
HQ250 rotary power head provides high-torque, fast-speed regulation and highly reliable rotary drive solutions for anchoring, jet grouting, tunnel pipe roofing, geological exploration, slope support and other projects. It precisely solves five key pain points in overseas construction: insufficient torque, troublesome speed regulation, instability under extreme conditions, high maintenance costs and poor adaptability. It can be quickly matched with various hydraulic drilling rigs to meet diverse working condition requirements.
{High torque for fast hole drilling, suitable for high-load working conditions such as deep foundation anchoring and slope support.}
{Adaptable to a wide temperature range environment, unaffected by climate differences at the construction site.}
{One-key switching between low-speed high-torque and high-speed low-torque to adapt to different working conditions.}
{Equipped with world-renowned brand cycloid motors for smooth power output and low failure rate, ensuring long-term continuous construction.}
{Standardized interfaces, original spare parts guarantee and technical support reduce maintenance costs}
{Adaptable to a wide temperature range environment, unaffected by climate differences at the construction site.}
{One-key switching between low-speed high-torque and high-speed low-torque to adapt to different working conditions.}
{Equipped with world-renowned brand cycloid motors for smooth power output and low failure rate, ensuring long-term continuous construction.}
{Standardized interfaces, original spare parts guarantee and technical support reduce maintenance costs}
- •High torque for fast hole drilling, suitable for high-load working conditions such as deep foundation anchoring and slope support.
- •Adaptable to a wide temperature range environment, unaffected by climate differences at the construction site.
- •One-key switching between low-speed high-torque and high-speed low-torque to adapt to different working conditions.
- •Equipped with world-renowned brand cycloid motors for smooth power output and low failure rate, ensuring long-term continuous construction.
- •Standardized interfaces, original spare parts guarantee and technical support reduce maintenance costs
TECHNICAL SPECS
{Power head parameters,[
Slewing torque ^25000N·m,
Speed ^150r/min,
Rotating flow ^200L/min,
Rotating pressure ^28MPa,
Reduction ratio ^1:4 / 4,
Threaded output ^through-hole (Φ130),
Center height ^275mm,
Weight ^936kg]}
Slewing torque ^25000N·m,
Speed ^150r/min,
Rotating flow ^200L/min,
Rotating pressure ^28MPa,
Reduction ratio ^1:4 / 4,
Threaded output ^through-hole (Φ130),
Center height ^275mm,
Weight ^936kg]}
| Slewing torque | 25000N·m |
| Speed | 150r/min |
| Rotating flow | 200L/min |
| Rotating pressure | 28MPa |
| Reduction ratio | 1:4 / 4 |
| Threaded output | through-hole (Φ130) |
| Center height | 275mm |
| Weight | 936kg |
RELATED PRODUCTS
PROJECT CASES
2984^3287^3002^3003
China

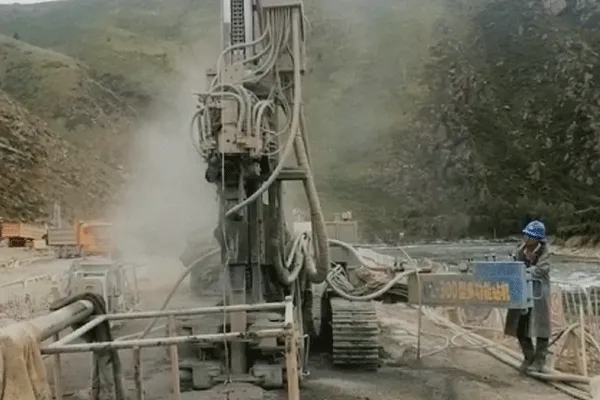

Anman Drilling Rig HDL-300 Conducts Top-Drive Drilling Operations in Complex Geology of Altay, Xinjiang
Anman HDL-300 drilling rig for cobble layer in Altay, Xinjiang — 54m case on how to drill in cobble ...
China
2022 Jiangsu Jingjiang HDL-200C Drilling and Cementing at the Yangtze River Tunnel, Jingjiang Section
HDL-200C with AM-17 top drive drilling rig at Yangtze River Tunnel — sand foundation treatment with ...
China
Malaysia's HDL-200C Top-Drive Drilling Rig Complet
HDL-200C cement curtain grouting in Malaysia — dam foundation drilling case with cutoff wall constru...
China

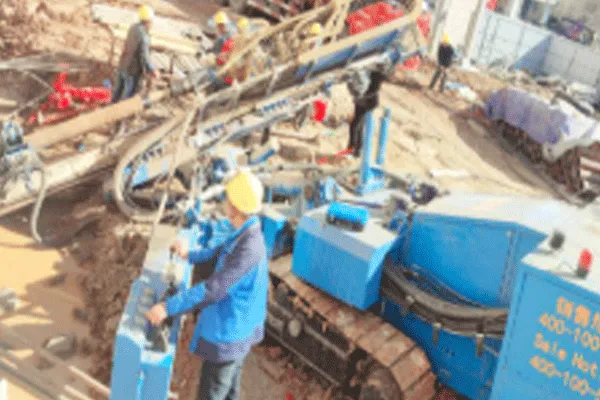

Anman HDL-200C Top-Drive Drill Successfully Completes Complex Foundation Construction Project in Bijie, Guizhou Province
