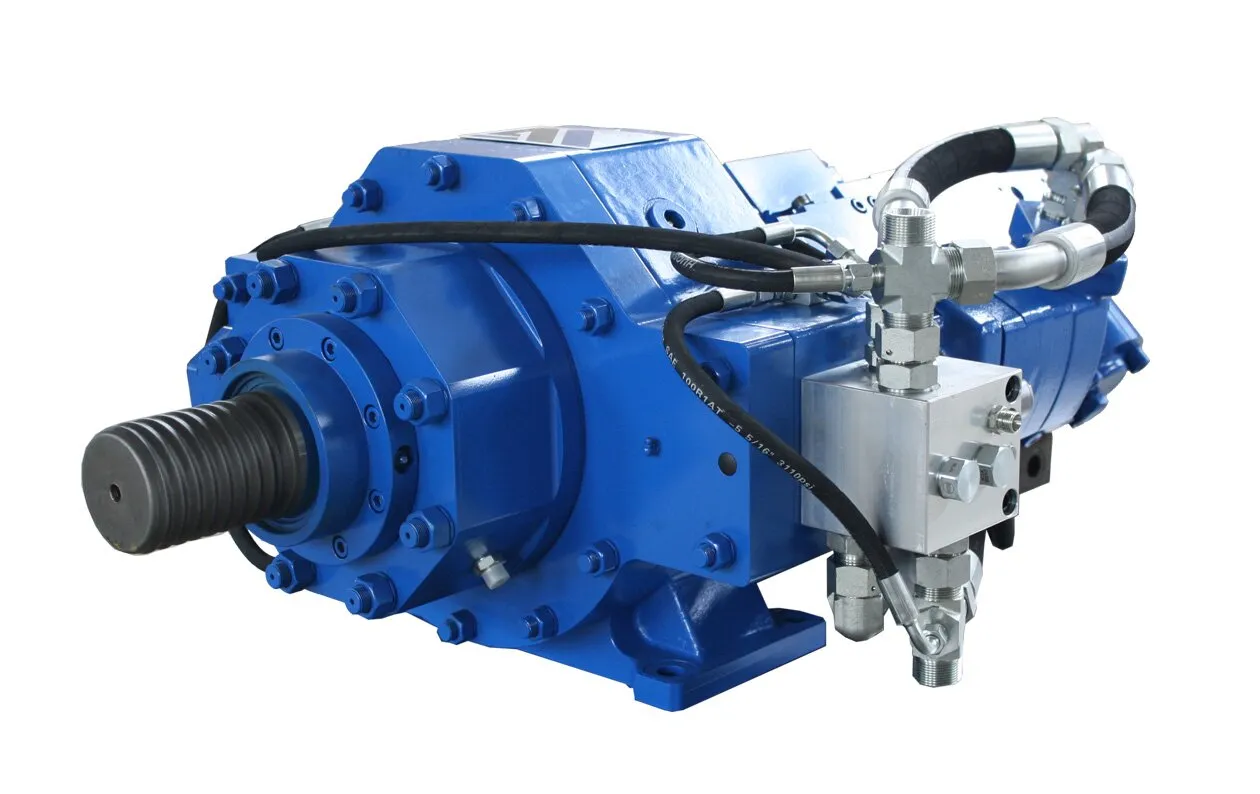

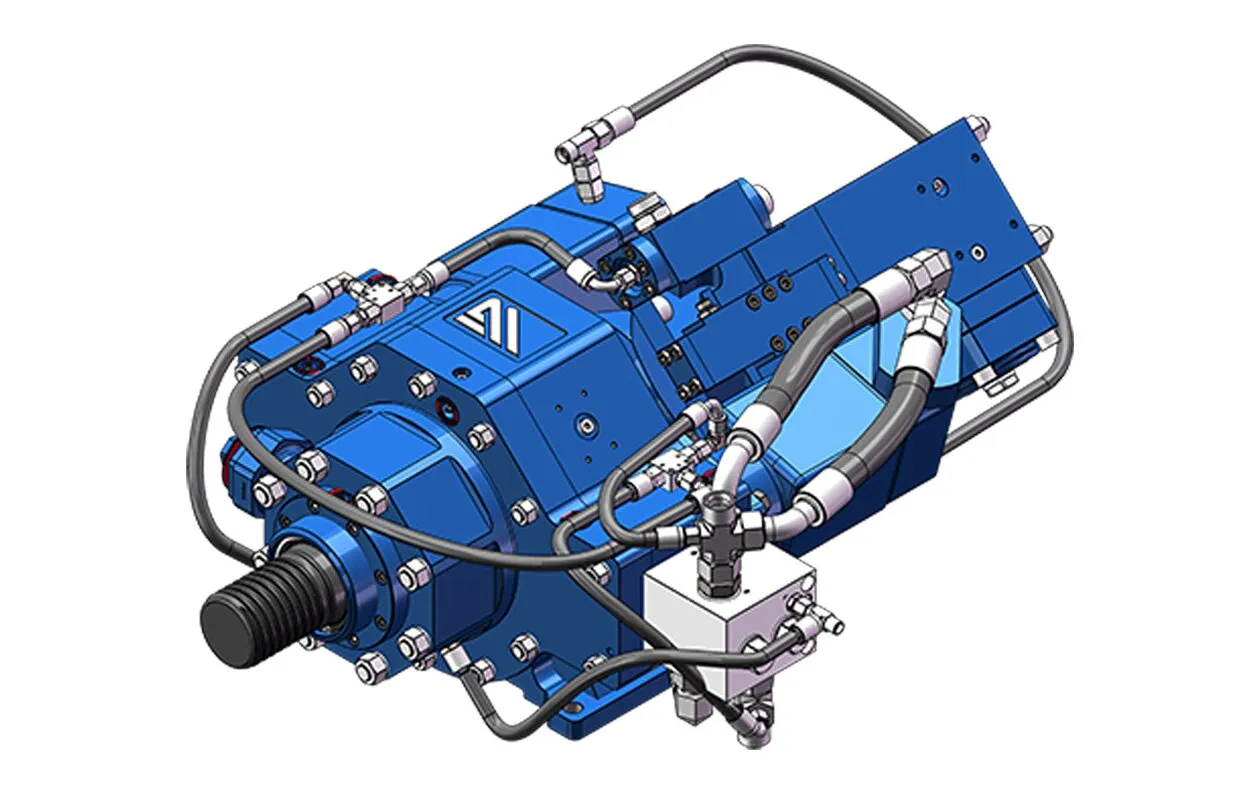

HD-100

Name: HD-100
Brand: Anman Drill
Availability: InStock

HD100 Top Drive Rotary Power Head solves issues such as slow hard rock drilling, frequent drill sticking and cumbersome maintenance, making complex formation drilling more efficient and hassle-free!

{Speed^120r/min}
{Slewing torque^4500N·m}
{Weight^560kg}

Speed：120r/min

Slewing torque：4500N·m

Weight：560kg

APPLICATION SCENARIOS

3041

BECOME A DISTRIBUTOR +8613921112897

PRODUCT OVERVIEW TECHNICAL SPECS RELATED PRODUCTS PROJECT CASES SERVICE POLICIES USER REVIEWS

PRODUCT OVERVIEW

HD100 Top Drive Rotary Power Head is a high-performance top drive unit specially designed for anchoring drilling rigs. With integrated percussion and rotary technology, it addresses industry pain points including slow drilling, insufficient torque, frequent drill sticking and cumbersome maintenance in hard rock, cobble and gravel layers. Suitable for rock breaking and hole drilling, underground micro-piles, anchor rods and cables, geological exploration, geothermal drilling, foundation reinforcement, slope support and other construction scenarios.

{Integrates high-frequency percussion and rotary cutting for rapid drilling in hard rock, cobble and gravel layers, greatly improving hole-forming speed.}
{One-key switch between low-speed high torque and high-speed low torque to adapt to different working conditions.}
{Multiple accumulators stabilize hydraulic pulses, ensuring stable impact energy, low failure rate and no attenuation under long-term heavy load.}
{Equipped with world-renowned orbital motors for smooth power output, low failure rate and reliable long-hour continuous operation.}
{Automatically reverses and impacts the drill pipe when stuck, enabling quick release, reducing drill tool wear and downtime risks.}
{Adapts to wide temperature ranges, performing stably regardless of on-site climate differences.}
{Standardized interfaces with genuine spare parts and technical support, reducing maintenance costs.}

•Integrates high-frequency percussion and rotary cutting for rapid drilling in hard rock, cobble and gravel layers, greatly improving hole-forming speed.
•One-key switch between low-speed high torque and high-speed low torque to adapt to different working conditions.
•Multiple accumulators stabilize hydraulic pulses, ensuring stable impact energy, low failure rate and no attenuation under long-term heavy load.
•Equipped with world-renowned orbital motors for smooth power output, low failure rate and reliable long-hour continuous operation.
•Automatically reverses and impacts the drill pipe when stuck, enabling quick release, reducing drill tool wear and downtime risks.
•Adapts to wide temperature ranges, performing stably regardless of on-site climate differences.
•Standardized interfaces with genuine spare parts and technical support, reducing maintenance costs.

TECHNICAL SPECS

{Power head parameters,[
Slewing torque ^11460/5730N·m,
Speed ^45/90r/min,
Rotating flow ^170L/min,
Rotating pressure ^20MPa,
modulus ^6,
Reduction ratio ^18:52 / 2.89,
Thread output ^H92,
Center height ^220mm,
Weight ^560kg,
Impact work^650J,
Impact frequency ^2300bpm,
Impact flow ^70~90L/min,
Impact pressure ^16~20Mpa,
Total power ^75~86kW,
Apply pressure ^60kN,
Enhancement ^120kN]}

Slewing torque	11460/5730N·m
Speed	45/90r/min
Rotating flow	170L/min
Rotating pressure	20MPa
modulus	6
Reduction ratio	18:52 / 2.89
Thread output	H92
Center height	220mm
Weight	560kg
Impact work	650J
Impact frequency	2300bpm
Impact flow	70~90L/min
Impact pressure	16~20Mpa
Total power	75~86kW
Apply pressure	60kN
Enhancement	120kN
